Description

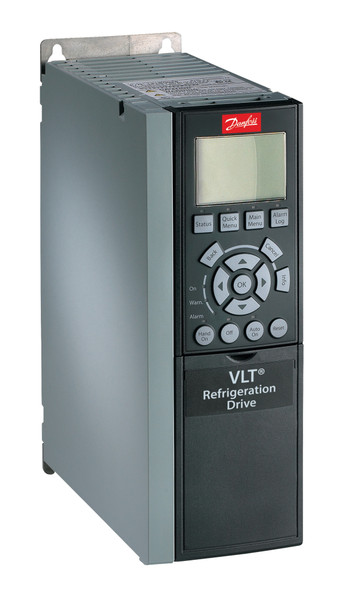

Frequency converter
FC-103N250T4E2MH2TGC7XQSXXXXALBXCXXXXD0
VLT® Refrigeration Drive FC-103
(N250) 250 KW / 350 HP,
Three phase, 380 - 480 VAC,IP21/Type 1+mains shield
RFI filter Class A2
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
PROFINET MCA 120, No B Option
No C1 option, 24V DC backup
Frame: D2H
Other options according to Model code
Model code:
FC-103N250T4E2MH2TGC7XQSXXXXALBXCXXXXD0
Whether you want to operate compressors, pumps or fans, the VLT®Refrigeration Drive FC 103 gives you the opportunity to save energy andextend the lifetime of the components.
| Gross weight | 125.3 Kilogram | ||
| Net weight | 125 Kilogram | ||
| EAN | 5710108232900 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® Refrigeration Drive | |
| Series | 103 | 103 | |
| Power Rating | N250 | (N250) 250 KW / 350 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E2M | IP21/Type 1+mains shield | |
| RFI Filter | H2 | RFI filter Class A2 | |
| Brake - Safe Stop | T | Safe Stop | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 7 | Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | Q | Heat-sink access | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AL | PROFINET MCA 120 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | 24V DC backup | |
| Frame Size | D2H | D2H | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 2 | 7XQSXXXXALBXCXXXXD0 | ||
| Power 110% (NO) [KW] | 250 | 250 | |
| Height [mm] | 1060,0 | 1060,0 | |
| Width w/ no C options [mm] | 420,0 | 420,0 | |
| Depth [mm] | 378,0 | 378,0 | |
| Depth with Option A/B [mm] | 378,0 | 378,0 | |
| kVA | 333 | 333 | |
| Power Loss NO [W] | 5129 | 5129 | |
| Power Loss NO [W] | 4558 | 4558 | |
| Continuous Current (NO) [A] | 480 | 480 | |
| Intermittent Current (NO) [A] | 528 | 528 | |
| Continuous Current (NO) [A] | 443 | 443 | |
| Intermittent Current (NO) [A] | 487 | 487 | |
| Calculated Gross Weight [kg] | 125.3 | ||
| Calculated Net Weight [kg] | 125 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Recommended Plant | ERR01 | ERR01 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-103N250T4E2MH2TGC | ||
| Modelcode02 | 7XQSXXXXALBXCXXXXD0 |
