Description

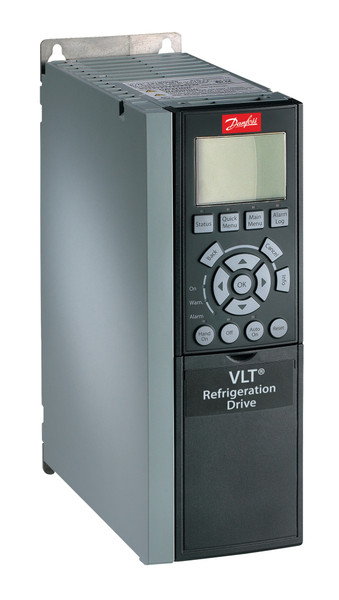

Frequency converter
FC-103N355T4E20H4XGCXXXSXXXXAQBXCXXXXD0
VLT® Refrigeration Drive FC-103
(N355) 355 KW / 500 HP,
Three phase, 380 - 480 VAC,(E20) IP20 / Chassis
RFI filter Class A1
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Modbus TCP MCA 122, No B Option
No C1 option, 24V DC backup
Frame: E3H
Other options according to Model code
Model code:
FC-103N355T4E20H4XGCXXXSXXXXAQBXCXXXXD0
Whether you want to operate compressors, pumps or fans, the VLT®Refrigeration Drive FC 103 gives you the...
| Gross weight | 272.3 Kilogram | ||
| Net weight | 272 Kilogram | ||
| EAN | 5714853391882 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® Refrigeration Drive | |
| Series | 103 | 103 | |
| Power Rating | N355 | (N355) 355 KW / 500 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H4 | RFI filter Class A1 | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AQ | Modbus TCP MCA 122 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | 24V DC backup | |
| Frame Size | E3H | E3H | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 2 | XXXSXXXXAQBXCXXXXD0 | ||
| Power 110% (NO) [KW] | 355 | 355 | |
| Height [mm] | 1578,0 | 1578,0 | |
| Width w/ no C options [mm] | 507,0 | 507,0 | |
| Depth [mm] | 482,0 | 482,0 | |
| Depth with Option A/B [mm] | 482,0 | 482,0 | |
| kVA | 456 | 456 | |
| Power Loss NO [W] | 6928 | 6928 | |
| Power Loss NO [W] | 5910 | 5910 | |
| Continuous Current (NO) [A] | 658 | 658 | |
| Intermittent Current (NO) [A] | 724 | 724 | |
| Continuous Current (NO) [A] | 590 | 590 | |
| Intermittent Current (NO) [A] | 649 | 649 | |
| Calculated Gross Weight [kg] | 272.3 | ||
| Calculated Net Weight [kg] | 272 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Plant from Orderline | B701 | B701 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-103N355T4E20H4XGC | ||
| Modelcode02 | XXXSXXXXAQBXCXXXXD0 |
