Description
Frequency converter
FC-103P11KT6E21HXXGXXXXSXXXXAXBXCXXXXD1

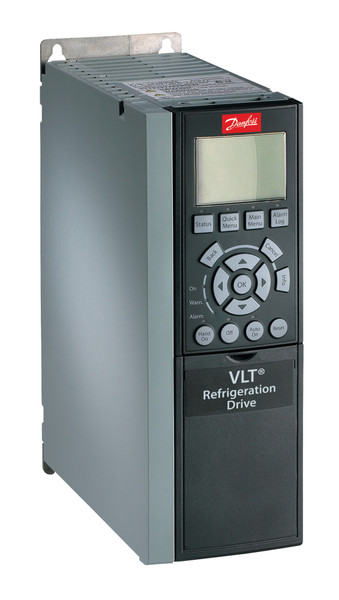

VLT® Refrigeration Drive FC-103
11 KW / 15 HP,
Three phase, 525 - 600 VAC,IP21 / Type 1
No RFI filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, MCB-117 Real time clock option
Frame: B1
Other options according to Model code
Model code:
FC-103P11KT6E21HXXGXXXXSXXXXAXBXCXXXXD1
Whether you want to operate compressors, pumps or fans, the VLT®Refrigeration Drive FC 103 gives you the opportunity to save energy andextend the lifetime of the components.
| Gross weight | 21.8 Kilogram | ||
| Net weight | 21.5 Kilogram | ||
| EAN | 5715253748221 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® Refrigeration Drive | |
| Series | 103 | 103 | |
| Power Rating | P11K | 11 KW / 15 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 6 | 525 - 600 VAC | |
| Enclosure | E21 | IP21 / Type 1 | |
| RFI Filter | HX | No RFI filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D1 | MCB-117 Real time clock option | |
| Frame Size | B1 | B1 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXD1 | ||
| Power 110% (NO) [KW] | 11 | 11 | |
| Height [mm] | 494,0 | 494,0 | |
| Width w/ no C options [mm] | 243,0 | 243,0 | |
| Depth [mm] | 261,0 | 261,0 | |
| Depth with Option A/B [mm] | 261,0 | 261,0 | |
| kVA | 17.9 | 17.9 | |
| Power Loss NO [W] | 300 | 300 | |
| Power Loss NO [W] | 300 | 300 | |
| Continuous Current (NO) [A] | 19 | 19 | |
| Intermittent Current (NO) [A] | 20.9 | 20.9 | |
| Continuous Current (NO) [A] | 18 | 18 | |
| Intermittent Current (NO) [A] | 19.8 | 19.8 | |
| Calculated Gross Weight [kg] | 21.8 | ||
| Calculated Net Weight [kg] | 21.5 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Plant from Orderline | F605 | F605 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-103P11KT6E21HXXGX | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXD1 |
