Description
Frequency converter
FC-103P15KT6E66HXXGXXXXSXXXXAXBXCXXXXDX

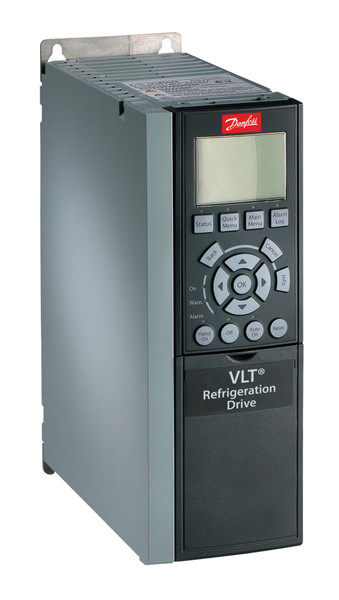

VLT® Refrigeration Drive FC-103
15 KW / 20 HP,
Three phase, 525 - 600 VAC,(E66) IP66 / NEMA 4X
No RFI filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: B1
Other options according to Model code
Model code:
FC-103P15KT6E66HXXGXXXXSXXXXAXBXCXXXXDX
Whether you want to operate compressors, pumps or fans, the VLT®Refrigeration Drive FC 103 gives you the...
| Gross weight | 23.3 Kilogram | ||
| Net weight | 23 Kilogram | ||
| EAN | 5710107723621 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® Refrigeration Drive | |
| Series | 103 | 103 | |
| Power Rating | P15K | 15 KW / 20 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 6 | 525 - 600 VAC | |
| Enclosure | E66 | (E66) IP66 / NEMA 4X | |
| RFI Filter | HX | No RFI filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | B1 | B1 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | ||
| Power 110% (NO) [KW] | 15 | 15 | |
| Height [mm] | 494,0 | 494,0 | |
| Width w/ no C options [mm] | 243,0 | 243,0 | |
| Depth [mm] | 261,0 | 261,0 | |
| Depth with Option A/B [mm] | 261,0 | 261,0 | |
| kVA | 21.9 | 21.9 | |
| Power Loss NO [W] | 400 | 400 | |
| Power Loss NO [W] | 400 | 400 | |
| Continuous Current (NO) [A] | 23 | 23 | |
| Intermittent Current (NO) [A] | 25.3 | 25.3 | |
| Continuous Current (NO) [A] | 22 | 22 | |
| Intermittent Current (NO) [A] | 24.2 | 24.2 | |
| Calculated Gross Weight [kg] | 22.4 | ||
| Calculated Net Weight [kg] | 22.1 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Recommended Plant | ERR01 | ERR01 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-103P15KT6E66HXXGX | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXDX |
