Description
Frequency converter

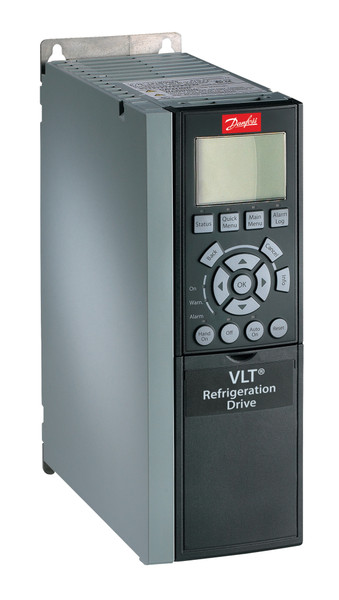

FC-103P37KT4E20H1XGXXXXSXXXXAXBXCXXXXD0
VLT® Refrigeration Drive FC-103
37 KW / 50 HP,
Three phase, 380 - 480 VAC,(E20) IP20 / Chassis
RFI filter Class A1 / B
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, 24V DC backup
Frame: B4
Other options according to Model code
Model code:
FC-103P37KT4E20H1XGXXXXSXXXXAXBXCXXXXD0
Whether you want to operate compressors, pumps or fans, the VLT®Refrigeration Drive FC 103 gives you the opportunity to save energy andextend the lifetime of the components.
| Gross weight | 36.6 Kilogram | ||
| Net weight | 36.3 Kilogram | ||
| Volume | 188.19 Liter | ||
| EAN | 5710108477165 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® Refrigeration Drive | |
| Series | 103 | 103 | |
| Power Rating | P37K | 37 KW / 50 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H1 | RFI filter Class A1 / B | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | 24V DC backup | |
| Frame Size | B4 | B4 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXD0 | ||
| Power 110% (NO) [KW] | 37 | 37 | |
| Height [mm] | 516,0 | 516,0 | |
| Width w/ no C options [mm] | 229,0 | 229,0 | |
| Depth [mm] | 242,0 | 242,0 | |
| Depth with Option A/B [mm] | 242,0 | 242,0 | |
| kVA | 50.6 | 50.6 | |
| Power Loss NO [W] | 739 | 739 | |
| Power Loss NO [W] | 739 | 739 | |
| Continuous Current (NO) [A] | 73 | 73 | |
| Intermittent Current (NO) [A] | 80.3 | 80.3 | |
| Continuous Current (NO) [A] | 65 | 65 | |
| Intermittent Current (NO) [A] | 71.5 | 71.5 | |
| Calculated Gross Weight [kg] | 22.8 | ||
| Calculated Net Weight [kg] | 22.5 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Recommended Plant | ERR01 | ERR01 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-103P37KT4E20H1XGX | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXD0 |
