Description
Frequency converter

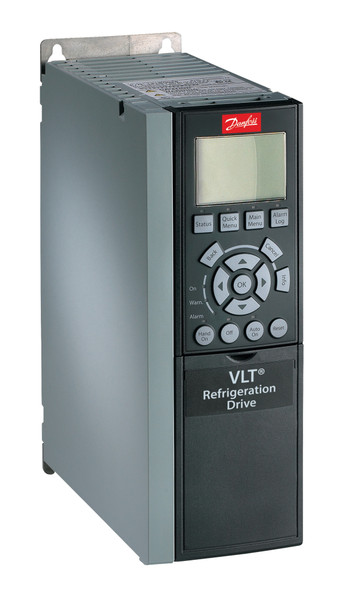

FC-103P560T4E54N2XGC7XXSXXXXAQBKCXXXXD0
VLT® Refrigeration Drive FC-103
560 KW / 750 HP,
Three phase, 380 - 480 VAC,(E54) IP54 / Type 12
LHD - AAF006 filter + A2 RFI
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
Modbus TCP MCA 122, MCB-101 General purpose I/O
No C1 option, 24V DC backup
Frame: F18
Other options according to Model code
Model code:
FC-103P560T4E54N2XGC7XXSXXXXAQBKCXXXXD0
Whether you want to operate compressors, pumps or fans, the VLT®Refrigeration Drive FC 103 gives you the opportunity to save energy andextend the lifetime of the components.
| Gross weight | 1004.3 Kilogram | ||
| Net weight | 1004 Kilogram | ||
| EAN | 5715253232133 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® Refrigeration Drive | |
| Series | 103 | 103 | |
| Power Rating | P560 | 560 KW / 750 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E54 | (E54) IP54 / Type 12 | |
| RFI Filter | N2 | LHD - AAF006 filter + A2 RFI | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 7 | Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AQ | Modbus TCP MCA 122 | |
| B Option | BK | MCB-101 General purpose I/O | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | 24V DC backup | |
| Frame Size | F18 | F18 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 2 | 7XXSXXXXAQBKCXXXXD0 | ||
| Power 110% (NO) [KW] | 560 | 560 | |
| Height [mm] | 2277,0 | 2277,0 | |
| Width w/ no C options [mm] | 2802,0 | 2802,0 | |
| Depth [mm] | 607,0 | 607,0 | |
| Depth with Option A/B [mm] | 607,0 | 607,0 | |
| kVA | 686 | 686 | |
| Power Loss NO [W] | 24592 | 24592 | |
| Power Loss NO [W] | 22353 | 22353 | |
| Continuous Current (NO) [A] | 990 | 990 | |
| Intermittent Current (NO) [A] | 1089 | 1089 | |
| Continuous Current (NO) [A] | 890 | 890 | |
| Intermittent Current (NO) [A] | 979 | 979 | |
| Calculated Gross Weight [kg] | 1004.3 | ||
| Calculated Net Weight [kg] | 1004 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Plant from Orderline | F605 | F605 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-103P560T4E54N2XGC | ||
| Modelcode02 | 7XXSXXXXAQBKCXXXXD0 |
