Description
FCD302P2K2T4W66H1X1EMFCFXXEXANBZXXXXXD0

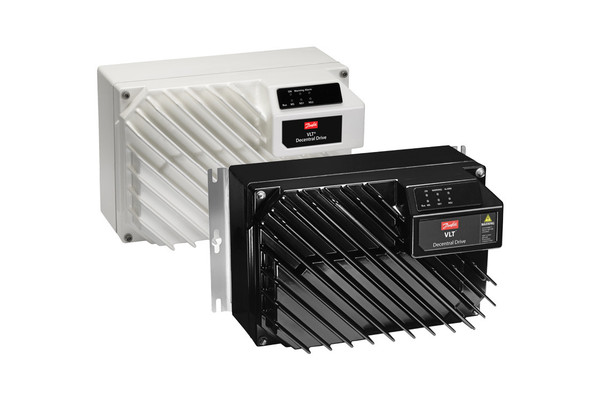

VLT® Decentral Drive FCD 302
2.2 kW / 3.0 HP, 380-480VAC (Three phased),Standard White IP66/NEMA4X,
RFI Class A1/C2, No brake, Compl. small stand alone, Flat brackets,
Metric threads, Service switch motor side, With display connector
Model code:
FCD302P2K2T4W66H1X1EMFCFXXEXANBZXXXXXD0
The VLT® Decentral Drive FCD 302 is a complete drive designed fordecentral mounting. It can be mounted o...
| Gross weight | 10.1 Kilogram | ||
| Net weight | 9.8 Kilogram | ||
| Volume | 39.938 Liter | ||
| EAN | 5710108741792 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FCD | VLT® DecentralDrive FCD | |
| VLT Series | 302 | 302 | |
| Power Rating | P2K2 | 2.2 kW / 3.0 HP | |
| Mains Voltage | T4 | 380-480VAC (Three phased) | |
| Enclosure | W66 | Standard White IP66/NEMA4X | |
| RFI Filter | H1 | RFI Class A1/C2 | |
| Brake | X | No brake | |
| Hardware Configuration | 1 | Compl. small stand alone | |
| Brackets | E | Flat brackets | |
| Threads | M | Metric threads | |
| Switch Option | F | Service switch motor side | |
| Display | C | With display connector | |
| Sensor Plugs | F | Direct mount 6xM12 | |
| Motor Plug | X | No motor plug | |
| Mains Plug | X | No mains plug | |
| Fieldbus Plug | E | M12 Ethernet | |
| Reserved | X | Reserved | |
| A Option | AN | Ethernet IP | |
| B Option | BZ | Safety PLC Interface | |
| Reserved for SW | XXXXX | Reserved for SW | |
| D Option | D0 | 24VDC back-up input | |
| FCD302 Frame Size | MF1 | (MF1) MF1 | |
| Typecode Part 2 | ANBZXXXXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Calculated Gross Weight [kg] | 10.1 | ||
| Calculated Net Weight [kg] | 9.8 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FCD302P2K2T4W66H1X1EMFCFXXEX | ||
| Modelcode02 | ANBZXXXXXD0 | ||
| Recommended Plant | ERR01 | ERR01 |
