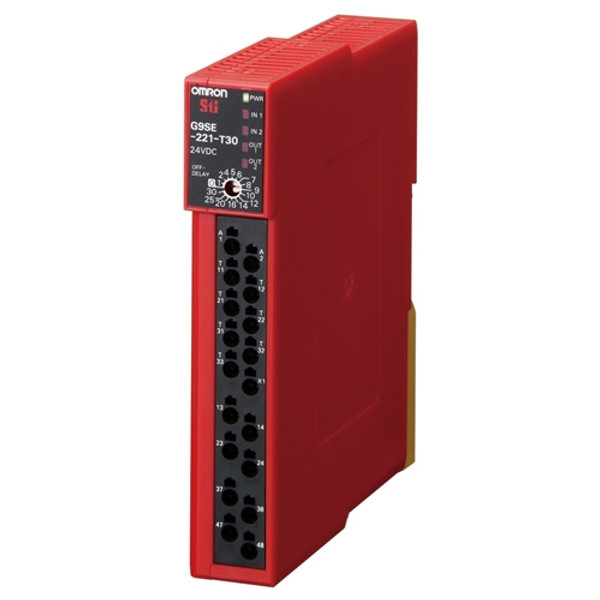

G9SE221T30DC24 OMRON safety relay 24VDC 4 outputs 30sec off delay
G9SE221T30DC24
G9SE-221-T30 DC24
| Brand: | Omron |
| Product Type: | Safety Relay |
| Series: | G9SE |
| Manufacturer Part No.: | G9SE-221-T30 DC24 |
| Description: | Omron Safety relay unit, 24 VDC, 4 safety outputs 5 A max (2+2 with 30 s off delay), aux. output |
| Model: | Basic Device |
| Suitable for Monitoring of Position Switches: | Yes |
| Suitable for Monitoring of Emergency-Stop Circuits: | Yes |
| Suitable for Monitoring of Valves: | No |
| Suitable for Monitoring of Optoelectronic Protection Equipment: | Yes |
| Suitable for Monitoring of Tactile Sensors: | Yes |
| Suitable for Monitoring of Magnetic Switches: | Yes |
| Suitable for Monitoring of Proximity Switches: | Yes |
| Type of Electrical Connection: | Other |
| Rail Mounting Possible: | Yes |
| Rated Control Supply Voltage Us at DC: | 24V |
| Voltage Type for Actuating: | DC |
| With Detachable Plugs: | No |
| Evaluation Inputs: | 2 Channel |
| With Start Input: | Yes |
| With Muting Function: | No |
| With Feedback Circuit: | Yes |
| No. of Undelayed Safety Outputs with Contact: | 2 |
| No. of Delayed Safety Outputs with Contact: | 2 |
| No. of Undelayed Signalling Outputs, Semiconductor: | 1 |
| Category according to EN 954-1: | 4 |
| Type of safety acc. IEC 61496-1: | 4 |
| Stop category acc. to IEC 60204: | 0 |
| Performance level acc. to EN ISO 13849-1: | Level e |
| SIL according to IEC 61508: | 3 |
| With approval for TÜV: | Yes |
| With approval for BG BIA: | No |
| With approval according to UL: | Yes |
| Width: | 22.5mm |
| Height: | 133mm |
| Depth: | 111.6mm |
| GTIN: | 04549734169363 |
