Description

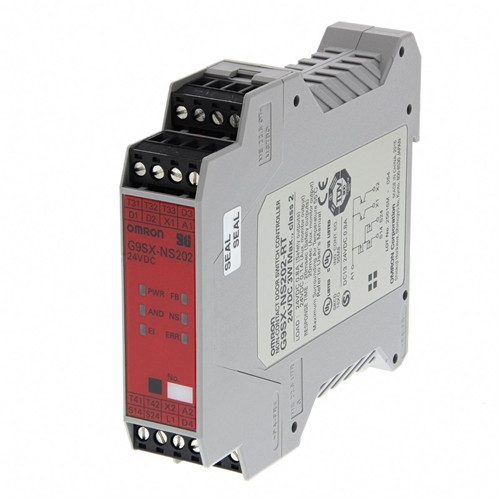

G9SX-NS202RTD24.1 OMRON NON CONTACT DOOR SWITCH CONTROLLER FOR D40A24V DC
G9SX-NS202RTD24-1
G9SX-NS202-RT DC24
| Brand: | Omron |
| Product Type: | Door Switch Controller |
| Series: | G9SX |
| Manufacturer Part No.: | G9SX-NS202-RT DC24 |
| Model: | Other |
| Suitable for Monitoring of Position Switches: | Yes |
| Suitable for Monitoring of Emergency-Stop Circuits: | Yes |
| Suitable for Monitoring of Valves: | Yes |
| Suitable for Monitoring of Optoelectronic Protection Equipment: | Yes |
| Suitable for Monitoring of Tactile Sensors: | Yes |
| Suitable for Monitoring of Magnetic Switches: | Yes |
| Suitable for Monitoring of Proximity Switches: | Yes |
| Type of Electrical Connection: | Screw Connection |
| Rail Mounting Possible: | Yes |
| Rated Control Supply Voltage Us at DC: | 20.4V - 26.4V |
| Voltage Type for Actuating: | DC |
| With Detachable Plugs: | No |
| Evaluation Inputs: | Other |
| With Start Input: | No |
| With Muting Function: | No |
| With Feedback Circuit: | Yes |
| No. of Undelayed Safety Outputs with Contact: | 2 |
| No. of Undelayed Safety Outputs, Semiconductor: | 2 |
| Category according to EN 954-1: | 4 |
| Type of safety acc. IEC 61496-1: | 4 |
| Stop category acc. to IEC 60204: | 1 |
| Performance level acc. to EN ISO 13849-1: | Level e |
| SIL according to IEC 61508: | 3 |
| With approval for TÜV: | Yes |
| With approval for BG BIA: | No |
| With approval according to UL: | Yes |
| Width: | 35.5mm |
| Height: | 100mm |
| Depth: | 115mm |
| GTIN: | 04547648837156 |
