Description

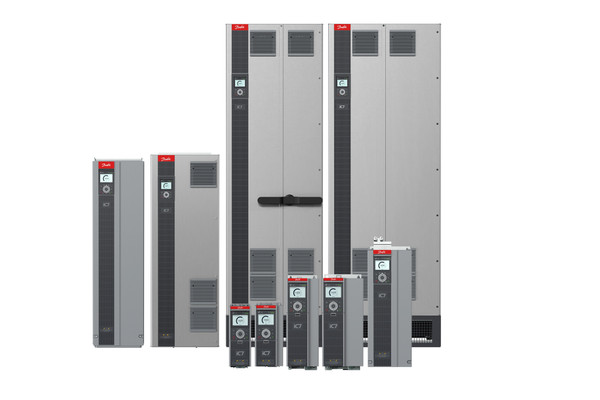

iC7-Automation
Frequency converter,air-cooled
IC7-60FA3N05-106AE21F3+ACBC+AJFX+ALDC+BAMT+BEF1+BF20+DAAU
IP21/UL Type 1, Frame: FK07
3~, 380-500 V AC,106 A
EMC category: C3 category
Control Panel 2.8 OPX20
Standard I/O: None
Fieldbus protocols enabled: Modbus TCP OS7MT
Other protocols enabled: Ethernet port, no protocol
Functional Safety: STO, not upgradable
Other options according to model code
Model code:
IC7-60FA3N05-106AE21F3+ACBC+AJFX+ALDC+BAMT+BEF1+BF20+DAAU
The iC7-Automation frequency converter is dedicated to a wide range ofdemanding automation applications. With precision motor control even inopen loop, the drive offers unique shaft perfor...
| Gross weight | 44.24 Kilogram | ||
| Net weight | 38.39 Kilogram | ||
| Volume | 109.92 Liter | ||
| EAN | 5715253741536 |
| Product series | +DAAU | iC7-Automation | |
| Product group | IC7-60 | iC7-60 | |
| Product category | FA | Frequency converter,air-cooled | |
| Product type | 3N | 3~ | |
| Mains voltage | 05 | 380-500 V AC | |
| Current rating | -106A | 106 A | |
| Power rating | 55K | 55 kW/75 hp | |
| Protection rating | E21 | IP21/UL Type 1 | |
| EMC category | F3 | C3 category | |
| Cable entry and EMC plate | +AAST | Standard plate | |
| Integrated brake chopper | +ACBC | Yes | |
| Extra environmental protection | +AGXX | None | |
| Humidity protection device | +AHXX | None | |
| Integrated common-mode filter | +AIXX | None | |
| Mains input device | +AJFX | AC fuses | |
| DC terminals | +ALDC | Yes | |
| Touch protection | +AMXX | None | |
| Heat sink access panel | +APXX | None | |
| Communication interface, X1/X2 | +BAMT | Modbus TCP OS7MT | |
| Communication interface, X0 | +BBEL | Ethernet port, no protocol | |
| Standard I/O | +BDXX | None | |
| Functional safety | +BEF1 | STO, not upgradable | |
| Control panel | +BF20 | Control Panel 2.8 OPX20 | |
| Interface board | +BISR | MicroSD card reader and RTC | |
| Option slot A | +CAX0 | None | |
| Option slot B | +CBXX | None, not upgradable | |
| Option slot C | +CCX0 | None | |
| Option slot D | +CDX0 | None | |
| Option Slot E | +CEX0 | None | |
| Customer specific application | +DBXX | None | |
| Additional drive features 1 | +DD1X | None | |
| Additional drive features 2 | +DE2X | None | |
| Additional drive features 3 | +DF3X | None | |
| Additional drive features 4 | +DG4X | None | |
| Additional drive features 5 | +DH5X | None | |
| High speed enabled | +DI6X | No | |
| Customization file package ID | +EAXXXXXX | No customization | |
| Product software ID | +ECXXX | Latest released version | |
| Technical documentation | +EGIN | Installation guide | |
| Customer-specific label | +EJXX | None | |
| Language package | +EL01 | Global | |
| Product specific marine cert. | +VBXX | None | |
| Frame designation | FK07 | FK07 | |
| Modelcode01 | IC7-60FA3N05-106AE21F3 | ||
| Modelcode02 | +ACBC+AJFX | ||
| Modelcode03 | +ALDC+BAMT | ||
| Modelcode04 | +BEF1+BF20 | ||
| Modelcode05 | +DAAU | ||
| Input Voltage | 3x380-500V | 3x380-500V | |
| Input frequency | 50/60Hz | 50/60Hz | |
| Short circuit current rating | 100kA | 100kA | |
| Output frequency | 0-590Hz | 0-590Hz | |
| Typical motor power PL (110%) | 55KW(400V)/75HP(460V) | 55KW(400V)/75HP(460V) | |
| Continous current IL (1/10min) | 106/96A | 106/96A | |
| Overload current IL (1/10min) | 117/106A | 117/106A | |
| Input current LO (1/10 min) | 103/90A | 103/90A | |
| Ambient temp LO (1/10 min) | 45°C/113°F | 45°C/113°F | |
| Typical motor power PH (150%) | 55KW(400V)/75HP(460V) | 55KW(400V)/75HP(460V) | |
| Continous current IH (1/10min) | 106/96A | 106/96A | |
| Overload current IH (1/10min) | 159/144A | 159/144A | |
| Input current HO (1/10 min) | 103/90A | 103/90A | |
| Ambient temp HO (1/10 min) | 45°C/113°F | 45°C/113°F | |
| Typical motor power PH2 (150%) | 45KW(400V)/60HP(460V) | 45KW(400V)/60HP(460V) | |
| Continous current IH (1/5min) | 90/81A | 90/81A | |
| Overload current IH (1/5min) | 135/122A | 135/122A | |
| Input curent HO2 (1/5 min) | 85/74A | 85/74A | |
| Ambient temp HO2 (1/5 min) | 45°C/113°F | 45°C/113°F | |
| Efficiency class-Relative loss | IE2 - 1.54% | IE2 - 1.54% | |
| Maximum Power Loss LO [W] | 1204 | 1204 | |
| Main unit Width | 239 MM / 9.4 IN | 239 MM / 9.4 IN | |
| Main unit Height | 770 MM / 30.3 IN | 770 MM / 30.3 IN | |
| Main unit Depth | 327 MM / 12.9 IN | 327 MM / 12.9 IN | |
| Calculated Net Weight [kg] | 38.39 | ||
| Calculated Gross Weight [kg] | 44.24 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Ambient temp. normal overload | 45°C/113°F | 45°C/113°F | |
| Enclosure rating | IP21 / TYPE 1 | IP21 / TYPE 1 | |
| Help Counter | 1 | ||
| Input current in Normal Overlo | 103/90A | 103/90A | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Product View (Switch) | GLBL | Global (Standard) | |
| Typecode Part 2 | -000147207 | ||
| Vendor | ERR01 | Cannot Determine Vendor |
