Description

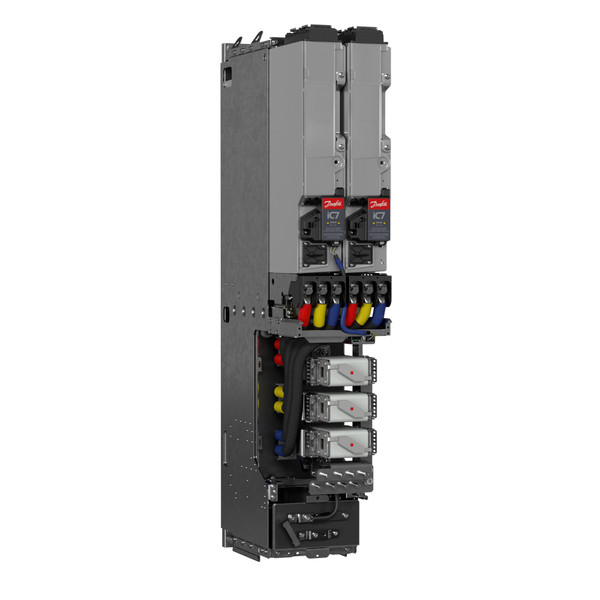

iC7-Hybrid
System module, liquid-cooled
IC7-60SLGC07-670AE00F3+AEZ3+AJFX+AKFX+ANNC+AONH+BAMT+BDC1+BEXX+BF20+BGK1+BH25+BK25+CAV0+CBT0+CCX0+CDX0+CEX0+CFX0+CGX0+CHX0+CIX0+CJX0+DAHY
IP00/Open Type, Frame:AR12L
Grid converter module, GC, 525-690 V AC / 640-1100 V DC,670 A
EMC category: C3 category
Control Panel 2.8 OPX20
Standard I/O: I/O and Relay Option OC7C1
Modbus TCP OS7MT
Functional Safety: None, not upgradable
Other options according to model code
Model code:
IC7-60SLGC07-670AE00F3+AEZ3+AJFX+AKFX+ANNC+AONH+BAMT+BDC1+BEXX+BF20+BGK1+BH25+BK25+CAV0+CBT0+CCX0+CDX0+CEX0+CFX0+CGX0+CHX0+CIX0+CJX0+DAHY
iC7-Hybrid is an enabler in electrification and hybridization applications. Use this power converter to integrate diverse energy sou
...
| Gross weight | 367 Kilogram | ||
| Net weight | 304 Kilogram | ||
| EAN | 5715253700021 |
| Product series | +DAHY | iC7-Hybrid | |
| Product group | IC7-60 | iC7-60 | |
| Product category | SL | System module, liquid-cooled | |
| Product type | GC | Grid converter module, GC | |
| Salescode part 2 | +AEZ3+AJFX+AKFX+ANNC | +AEZ3+AJFX+AKFX+ANNC | |
| Mains voltage | 07 | 525-690 V AC / 640-1100 V DC | |
| Salescode part 3 | +AONH+BAMT+BDC1+BEXX+BF20 | +AONH+BAMT+BDC1+BEXX+BF20 | |
| Current rating | -670A | 670 A | |
| Salescode part 4 | +BGK1+BH25+BK25+CAV0+CBT0 | +BGK1+BH25+BK25+CAV0+CBT0 | |
| Power rating | XXX | Not relevant | |
| Salescode part 5 | +CCX0+CDX0+CEX0+CFX0+CGX0+CHX0 | +CCX0+CDX0+CEX0+CFX0+CGX0+CHX0 | |
| Protection rating | E00 | IP00/Open Type | |
| Salescode part 6 | +CIX0+CJX0+DAHY | +CIX0+CJX0+DAHY | |
| EMC category | F3 | C3 category | |
| Integration unit | +AEZ3 | Standard, with LCL filter | |
| Mains input device | +AJFX | AC fuses | |
| DC fuses and devices | +AKFX | DC bus fuses | |
| Cooling circuit connector type | +ANNC | Threaded connection, G 1/2" | |
| Cooling circuit hose length | +AONH | None | |
| Marine construction | +AFXX | None | |
| Extra environmental protection | +AGCX | Coated boards | |
| Communication interface, X1/X2 | +BAMT | Modbus TCP OS7MT | |
| Communication interface, X0 | +BBEL | Ethernet port, no protocol | |
| Standard I/O | +BDC1 | I/O and Relay Option OC7C1 | |
| Functional safety | +BEXX | None, not upgradable | |
| Control panel | +BF20 | Control Panel 2.8 OPX20 | |
| Control panel mounting type | +BGK1 | Flush mount | |
| Control panel cable length | +BH25 | 2.5 m (8 ft) | |
| Control unit cable length | +BK25 | 2.5 m (8 ft), Fiber | |
| StarCoupler board cable length | +BLXX | None | |
| Option slot A | +CAV0 | Voltage Measurement OC7V0 | |
| Option slot B | +CBT0 | Temperature Measurement OC7T0 | |
| Option slot C | +CCX0 | None | |
| Option slot D | +CDX0 | None | |
| Option slot E | +CEX0 | None | |
| Option slot F | +CFX0 | None | |
| Option slot G | +CGX0 | None | |
| Option slot H | +CHX0 | None | |
| Option slot I | +CIX0 | None | |
| Option slot J | +CJX0 | None | |
| Language package | +EL01 | Global | |
| Customer specific application | +DBXX | None | |
| Additional drive features 1 | +DD1X | None | |
| Additional drive features 2 | +DE2X | None | |
| Additional drive features 3 | +DF3X | None | |
| Additional drive features 4 | +DG4X | None | |
| Additional drive features 5 | +DH5X | None | |
| High speed enabled | +DI6X | No | |
| Customization file package ID | +EAXXXXXX | No customization | |
| Product software ID | +ECXXX | Latest released version | |
| Technical documentation | +EGXX | None | |
| Documentation language | +EHXX | Multi-language | |
| Customer-specific label | +EJXX | None | |
| Shipping package | +TACB | Cardboard box package | |
| Product specific marine cert. | +VBXX | None | |
| Frame designation | AR12L | AR12L | |
| Modelcode01 | IC7-60SLGC07-670AE00F3 | ||
| Modelcode02 | +AEZ3+AJFX+AKFX+ANNC | ||
| Modelcode03 | +AONH+BAMT+BDC1+BEXX+BF20 | ||
| Modelcode04 | +BGK1+BH25+BK25+CAV0+CBT0 | ||
| Modelcode05 | +CCX0+CDX0+CEX0+CFX0+CGX0+CHX0 | ||
| Modelcode06 | +CIX0+CJX0+DAHY | ||
| Main unit Width | 235MM/9.3IN+300MM/11.8IN | 235MM/9.3IN+300MM/11.8IN | |
| Main unit Height | 1295MM/51IN+429.5MM/16.9IN | 1295MM/51IN+429.5MM/16.9IN | |
| Main unit Depth | 566MM/22.3IN+249.9MM/9.8IN | 566MM/22.3IN+249.9MM/9.8IN | |
| Calculated Gross Weight [kg] | 367 | ||
| Calculated Net Weight [kg] | 304 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| AC voltage | 3X525-690VAC | 3X525-690VAC | |
| Apparent power | /711KVA(600VAC) | /711KVA(600VAC) | |
| Apparent power | 818KVA(690VAC) | 818KVA(690VAC) | |
| check if complete | OK | OK | |
| Cooling type | Liquid Cooled | Liquid Cooled | |
| DC Bus current | 783A(1025VDC) | 783A(1025VDC) | |
| DC Bus voltage | 640-1100VDC | 640-1100VDC | |
| DC power | 802KW(1025VDC) | 802KW(1025VDC) | |
| Enclosure rating | IP00 / OPEN TYPE | IP00 / OPEN TYPE | |
| Help Counter | 1 | ||
| Input frequency | 50/60Hz | 50/60Hz | |
| Liquid temp. High Overload | 45°C/113°F | 45°C/113°F | |
| Liquid temp. Low Overload | 45°C/113°F | 45°C/113°F | |
| Liquid temp. Nominal load | 45°C/113°F | 45°C/113°F | |
| Nominal AC current | 684A | 684A | |
| Output frequency | 25-70Hz | 25-70Hz | |
| Plant from Orderline | D801 | D801 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Product Category -DrivesSymbol | System module, liquid-cooled | System module, liquid-cooled | |
| Product Type - DrivesSymbol | Grid converter module | Grid converter module | |
| Product View (Switch) | GLBL | Global (Standard) | |
| Salescode part 1 | IC7-60SLGC07-670AE00F3 | IC7-60SLGC07-670AE00F3 | |
| Short circuit current rating | 100kA | 100kA | |
| Storage temperature | -40...70°C/-40...158°F | -40...70°C/-40...158°F | |
| Typecode Part 2 | -000141997 | ||
| Vendor | ERR01 | Cannot Determine Vendor |
