Description

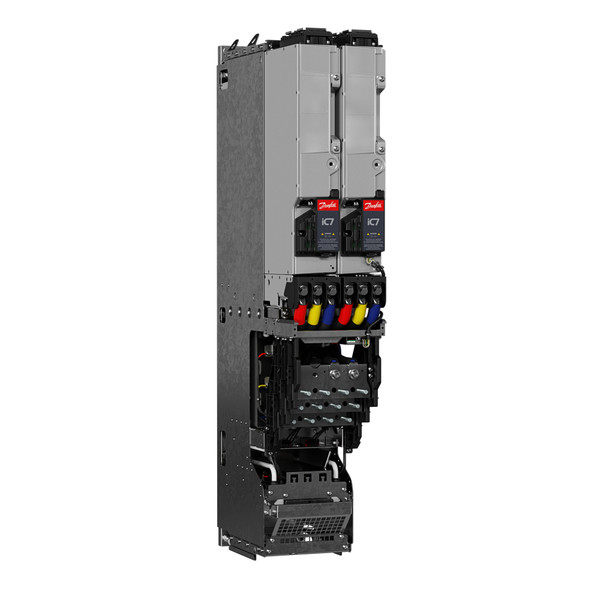

iC7-Marine
System module, liquid-cooled
IC7-60SLIN07-525AE00F4+AEU1+AFMC+AKFX+ANN1 +AONH+BAMT+BDC1+BEXX+BF20+BGK1+BH15+BK15+BL25+CAM0+CBX0 +DAMA +EGIN+EHEN +VBLR
IP00/Open Type, Frame: IR12L
Inverter module, INU, 525-690 V AC / 640-1100 V DC, 525 A
EMC category: C4 category
Control Panel 2.8 OPX20
Standard I/O: I/O and Relay Option OC7C1
Modbus TCP OS7MT
Functional Safety: None, not upgradable
Other options according to model code
Model code:
IC7-60SLIN07-525AE00F4+AEU1+AFMC+AKFX+ANN1+AONH+BAMT+BDC1+BEXX+BF20+BGK1+BH15+BK15+BL25+CAM0+CBX0+DAMA+EGIN+EHEN+VBLR
iC7 series air-cooled and liquid-cooled system modules are designed for fast integration, and powerful shaft and grid performance. They are amongst the most compact drives available on th...
| Gross weight | 220 Kilogram | ||
| Net weight | 178 Kilogram | ||
| EAN | 5715253766911 |
| Product series | +DAMA | iC7-Marine | |
| Product group | IC7-60 | iC7-60 | |
| Product category | SL | System module, liquid-cooled | |
| Product type | IN | Inverter module, INU | |
| Mains voltage | 07 | 525-690 V AC / 640-1100 V DC | |
| Current rating | -525A | 525 A | |
| Power rating | 500 | 500 kW/650 HP | |
| Protection rating | E00 | IP00/Open Type | |
| EMC category | F4 | C4 category | |
| Integration unit | +AEU1 | Standard, with dU/dt filter | |
| Mains input device | +AJXX | None | |
| DC fuses and devices | +AKFX | DC bus fuses | |
| Cooling circuit connector type | +ANN1 | Push-in connection | |
| Cooling circuit hose length | +AONH | None | |
| Marine construction | +AFMC | Power terminal adapter | |
| Extra environmental protection | +AGCX | Coated boards | |
| Communication interface, X1/X2 | +BAMT | Modbus TCP OS7MT | |
| Communication interface, X0 | +BBEL | Ethernet port, no protocol | |
| Standard I/O | +BDC1 | I/O and Relay Option OC7C1 | |
| Functional safety | +BEXX | None, not upgradable | |
| Control panel | +BF20 | Control Panel 2.8 OPX20 | |
| Control panel mounting type | +BGK1 | Flush mount | |
| Control panel cable length | +BH15 | 1.5 m (5 ft) | |
| Control unit cable length | +BK15 | 1.5 m (5 ft), Fiber | |
| StarCoupler board cable length | +BL25 | 2.5 m (8 ft), Fiber | |
| Option slot A | +CAM0 | Encoder/Resolver Option OC7M0 | |
| Option slot B | +CBX0 | None | |
| Option slot C | +CCXX | None, without mounting plate | |
| Option slot D | +CDXX | None, without mounting plate | |
| Option slot E | +CEXX | None, without mounting plate | |
| Option slot F | +CFXX | None, without mounting plate | |
| Option slot G | +CGXX | None, without mounting plate | |
| Option slot H | +CHXX | None, without mounting plate | |
| Option slot I | +CIXX | None, without mounting plate | |
| Option slot J | +CJXX | None, without mounting plate | |
| Language package | +EL01 | Global | |
| Customer specific application | +DBXX | None | |
| Additional drive features 1 | +DD1X | None | |
| Additional drive features 2 | +DE2X | None | |
| Additional drive features 3 | +DF3X | None | |
| Additional drive features 4 | +DG4X | None | |
| Additional drive features 5 | +DH5X | None | |
| High speed enabled | +DI6X | No | |
| Customization file package ID | +EAXXXXXX | No customization | |
| Product software ID | +ECXXX | Latest released version | |
| Technical documentation | +EGIN | Installation guide | |
| Documentation language | +EHEN | English | |
| Customer-specific label | +EJXX | None | |
| Shipping package | +TACB | Cardboard box package | |
| Product specific marine cert. | +VBLR | Lloyd's Register | |
| Frame designation | IR12L | IR12L | |
| Modelcode01 | IC7-60SLIN07-525AE00F4 | ||
| Modelcode02 | +AEU1+AFMC+AKFX+ANN1 | ||
| Modelcode03 | +AONH+BAMT+BDC1+BEXX+BF20 | ||
| Modelcode04 | +BGK1+BH15+BK15+BL25+CAM0+CBX0 | ||
| Modelcode06 | +DAMA | ||
| Modelcode08 | +EGIN+EHEN | ||
| Modelcode09 | +VBLR | ||
| Main unit Width | 235MM/9.3IN | 235MM/9.3IN | |
| Main unit Height | 1295MM/51IN | 1295MM/51IN | |
| Main unit Depth | 566MM/22.3IN | 566MM/22.3IN | |
| Calculated Gross Weight [kg] | 220 | ||
| Calculated Net Weight [kg] | 178 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| AC voltage | 3X0-575/600/690VAC | 3X0-575/600/690VAC | |
| check if complete | OK | OK | |
| Continous current IH (1/5min) | 393A | 393A | |
| Continous current IL (1/5min) | 525A | 525A | |
| Cooling type | Liquid Cooled | Liquid Cooled | |
| DC Bus current | 589A(932VDC) | 589A(932VDC) | |
| DC Bus voltage | 640-1100VDC | 640-1100VDC | |
| DC power | 548KW(932VDC) | 548KW(932VDC) | |
| Enclosure rating | IP00 / OPEN TYPE | IP00 / OPEN TYPE | |
| Help Counter | 1 | ||
| Liquid temp. High Overload | 45°C/113°F | 45°C/113°F | |
| Liquid temp. Low Overload | 45°C/113°F | 45°C/113°F | |
| Liquid temp. Nominal load | 45°C/113°F | 45°C/113°F | |
| Nominal AC current | 536A | 536A | |
| Output frequency | 0-599Hz | 0-599Hz | |
| Overload current IH (1/5min) | 590A | 590A | |
| Overload current IL (1/5min) | 578A | 578A | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Product Category -DrivesSymbol | System module, liquid-cooled | System module, liquid-cooled | |
| Product Type - DrivesSymbol | Inverter module | Inverter module | |
| Product View (Switch) | GLBL | Global (Standard) | |
| Salescode part 1 | IC7-60SLIN07-525AE00F4 | IC7-60SLIN07-525AE00F4 | |
| Salescode part 2 | +AEU1+AFMC+AKFX+ANN1 | +AEU1+AFMC+AKFX+ANN1 | |
| Salescode part 3 | +AONH+BAMT+BDC1+BEXX+BF20 | +AONH+BAMT+BDC1+BEXX+BF20 | |
| Salescode part 4 | +BGK1+BH15+BK15+BL25+CAM0+CBX0 | +BGK1+BH15+BK15+BL25+CAM0+CBX0 | |
| Salescode part 5 | +DAMA | +DAMA | |
| Salescode part 6 | +EGIN+EHEN | +EGIN+EHEN | |
| Salescode part 7 | +VBLR | +VBLR | |
| Short circuit current rating | 100kA | 100kA | |
| Start current Imax (3sec) | 786A | 786A | |
| Storage temperature | -40...70°C/-40...158°F | -40...70°C/-40...158°F | |
| Typecode Part 1 | 7SM-MASLIN07-525AE00F4 | ||
| Typecode Part 2 | -000153950 | ||
| Typical motor power PH2 (150%) | 355KW(690VAC)/400HP(575VAC) | 355KW(690VAC)/400HP(575VAC) | |
| Typical motor power PL (110%) | 500KW(690VAC)/500HP(575VAC) | 500KW(690VAC)/500HP(575VAC) | |
