Description

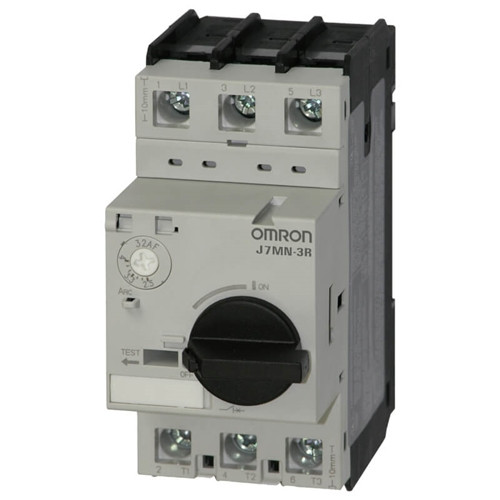

J7MN3R22 OMRON 14-22A MPCBSAP 234304
J7MN3R22
J7MN-3R-22
| Brand: | Omron |
| Series: | J7MN |
| Product Type: | Motor Protection Circuit Breaker |
| Manufacturer Part No.: | J7MN-3R-22 |
| Description: | Omron motor protection circuit breaker, rotary type, 3-pole, 14-22 A |
| Overload Release Current Setting: | 14A - 22A |
| Adjustment Range Undelayed Short-Circuit Release: | 286A |
| Thermal Protection: | Yes |
| Phase Failure Sensitive: | Yes |
| Switch Off Technique: | Thermomagnetic |
| Rated Operating Voltage: | 400V |
| Rated Permanent Current Iu: | 22A |
| Rated Operation Power at AC-3, 230 V: | 7.5kW |
| Rated Operation Power at AC-3, 400 V: | 7.5kW |
| Type of Electrical Connection - Main Circuit: | Screw Connection |
| Type of Control Element: | Turn Button |
| Device Construction: | Complete device in housing |
| With Integrated Auxiliary Switch: | No |
| With Integrated Under Voltage Release: | No |
| Number of Poles: | 3 |
| Rated Short-Circuit Breaking Capacity lcu at 400 V, AC: | 50kA |
| IP Rating: | IP20 |
| Height: | 98mm |
| Width: | 45mm |
| Depth: | 100mm |
| Weight: | 0.36Kg |
| GTIN: | 04547648327206 |
