Description
NXA03256-A0T02SG-A1A2D7B5E9 +GSNT +DLFR+LPC2+SPXV
Vacon Active Front-End Unit
525 – 690 Vac (640-1100 Vdc), 325 Amp, IP00
Alpha-numeric display
IEC61800-3 for IT networks
No Brake
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: 2RO(NO/NC)
C Slot: Line voltage meas.
D Slot: 3RO(NO)
E Slot: 2-port ethernet
Manual: French
Frame 10 INU
Other options according to Model code
Model code:
NXA03256-A0T02SG-A1A2D7B5E9+GSNT+DLFR+LPC2+SPXV

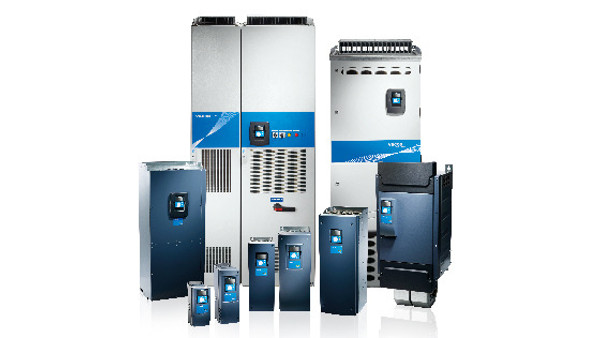

The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
...
| Gross weight | 101 Kilogram | ||
| Net weight | 100 Kilogram | ||
| EAN | 5714853428700 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXA | Active Front-End Unit | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | S | Standard air cooled drive | |
| Mains voltage | 6- | 525 – 690 Vac (640-1100 Vdc) | |
| Current | 0325 | 325 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | 0 | IP00 | |
| EMC emission levels | T | IEC61800-3 for IT networks | |
| Brake Chopper | 0 | No Brake | |
| Electrical Modification | 2 | AFE module w/o LCL | |
| Card Modifications | G- | FiberConnection+Varnished PCB | |
| Shipping Package | +GSNT | Without packaging | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGNO | No conduit plate | |
| Option Slot A | A1 | 6DI,DO,2AI,1AO,+10Vr,+24V | |
| Option Slot B | A2 | 2RO(NO/NC) | |
| Option Slot C | D7 | Line voltage meas. | |
| Option Slot D | B5 | 3RO(NO) | |
| Option Slot E | E9 | 2-port ethernet | |
| Firmware language package | +FL22 | UK,FR,IT,ES,PT;WestEur | |
| Documentation Level | +DPAP | Paper manuals | |
| Documentation Lang. Preference | +DLFR | French | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | NONE | no software license | |
| Application | +ARFIFF02 | AFE application NXA,NXI,NXP | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC2 | Two sets of product labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | FI10 | Frame 10 INU | |
| Sub family identification | +SPXV | Sub-configuration for VEO | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DA-032560 | ||
| Typecode Part 2 | -000056682 | ||
| Salestext | FI1003256-0T | FI1003256-0T | |
| Modelcode01 | NXA03256-A0T02SG- | ||
| Modelcode02 | A1A2D7B5E9 | ||
| Modelcode04 | +GSNT | ||
| Modelcode05 | +DLFR | ||
| Modelcode06 | +LPC2+SPXV | ||
| Calculated Net Weight [kg] | 97 | ||
| Calculated Gross Weight [kg] | 98 | ||
| Motor Power Low Overload [kW] | 377 | 377 | |
| Motor Power High Overload [kW] | - | - | |
| Dimensions WxHxD [mm] | 239X1030X552 | 239X1030X552 | |
| Continuous Current (NO) [A] | 325 | 325 | |
| Continuous Current (HO) [A] | 261 | 261 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stock Code | 7DA-032560 | 7DA-032560 | |
| check if complete | OK | OK | |
| Salescode part 2 | A1A2D7B5E9 | ||
| STAT NO | 02524 | ||
| Calculated Package Weight | 1 | ||
| Help Counter | 1 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Recommended Plant | ERR01 | ERR01 | |
| Salescode part 3 | +GSNT | +GSNT |
