Description
NXI09206-A0T0ISG-A1AFB4D2EC +FL23+DCD3+ADFIF101 +DLDE+LPC2
Vacon NXI Inverter Unit
525 – 690 Vac (640-1100 Vdc), 920 Amp, IP00
Alpha-numeric display
IEC61800-3 for IT networks
No Brake
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: STO, ATEX therm
C Slot: AI,2AO(mA,isol),+24V/EXT
D Slot: SysBus(1fiber), CAN-MonBus
E Slot: EtherCAT
Manual: German
Frame 13 INU
ATEX: II (2) GD
Other options according to Model code
Model code:
NXI09206-A0T0ISG-A1AFB4D2EC+FL23+DCD3+ADFIF101+DLDE+LPC2

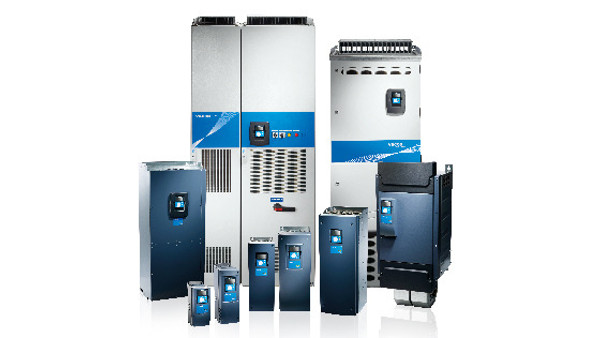

The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
...
| Gross weight | 307 Kilogram | ||
| Net weight | 306 Kilogram | ||
| EAN | 5714853230952 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXI | NXI Inverter Unit | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | S | Standard air cooled drive | |
| Mains voltage | 6- | 525 – 690 Vac (640-1100 Vdc) | |
| Current | 0920 | 920 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | 0 | IP00 | |
| EMC emission levels | T | IEC61800-3 for IT networks | |
| Brake Chopper | 0 | No Brake | |
| Electrical Modification | I | INU, no charging circuit | |
| Card Modifications | G- | FiberConnection+Varnished PCB | |
| Shipping Package | +GSCB | Cardboard box as Shipping pack | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGNO | No conduit plate | |
| Option Slot A | A1 | 6DI,DO,2AI,1AO,+10Vr,+24V | |
| Option Slot B | AF | STO, ATEX therm | |
| Option Slot C | B4 | AI,2AO(mA,isol),+24V/EXT | |
| Option Slot D | D2 | SysBus(1fiber), CAN-MonBus | |
| Option Slot E | EC | EtherCAT | |
| Firmware language package | +FL23 | UK,NL,DE,FR,ITWestEurII | |
| Documentation Level | +DPAP | Paper manuals | |
| Documentation Lang. Preference | +DLDE | German | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | +DCD3 | DC/DC converter; Uout,max>75% | |
| Application | +ADFIF101 | Appl sw ADFIF101 NXP, NXI | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC2 | Two sets of product labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | FI13 | Frame 13 INU | |
| Sub family identification | NONE | Normal customer ordered | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DI-092060 | ||
| Typecode Part 2 | -000028203 | ||
| Salestext | FI1309206-0T | FI1309206-0T | |
| Modelcode01 | NXI09206-A0T0ISG- | ||
| Modelcode02 | A1AFB4D2EC | ||
| Modelcode03 | +FL23+DCD3 | ||
| Modelcode04 | +ADFIF101 | ||
| Modelcode05 | +DLDE | ||
| Modelcode06 | +LPC2 | ||
| Calculated Net Weight [kg] | 292 | ||
| Calculated Gross Weight [kg] | 293 | ||
| Motor Power Low Overload [kW] | 900 | 900 | |
| Motor Power High Overload [kW] | 800 | 800 | |
| Dimensions WxHxD [mm] | 708X1030X553 | 708X1030X553 | |
| Continuous Current (HO) [A] | 820 | 820 | |
| ATEX Marking 1 | ATEX: II (2) GD | ATEX: II (2) GD | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stockcode part 1 | 7DI-092060-118G1R | ||
| Stock Code | 7DI-092060 | 7DI-092060 | |
| check if complete | OK | OK | |
| Salescode part 2 | A1AFB4D2EC | ||
| STAT NO | 18027 | ||
| Calculated Net Weight | 306 | ||
| Calculated Package Weight | 1 | ||
| Help Counter | 1 | ||
| Plant from Orderline | B701 | B701 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Salescode part 3 | +FL23+DCD3 | +FL23+DCD3 |
