Description
NXP00806-A2L0SSV-A8AFBH00E5+QGLM +FL28+APFIFF40 +DPAP
Vacon NXP Frequency Converter
525 – 690 Vac (640-1100 Vdc), 80 Amp, IP21/NEMA1
Alpha-numeric display
IEC61800-3, 2. enviroment
No Brake
A Slot: OPTA1 w.galv.isol 2AI&1AO
B Slot: STO, ATEX therm
C Slot: 3 temp meas channels
D Slot: No board
E Slot: PROFIBUS DP with Sub-D9
Manual: English
Frame 08
ATEX: II (2) GD
Other options according to Model code
Model code:
NXP00806-A2L0SSV-A8AFBH00E5+QGLM+FL28+APFIFF40+DPAP

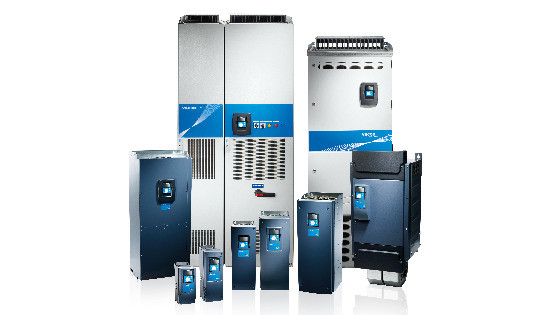

The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
...
| Gross weight | 59 Kilogram | ||
| Net weight | 58 Kilogram | ||
| EAN | 5714853230860 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXP | NXP Frequency Converter | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | S | Standard air cooled drive | |
| Mains voltage | 6- | 525 – 690 Vac (640-1100 Vdc) | |
| Current | 0080 | 80 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | 2 | IP21/NEMA1 | |
| EMC emission levels | L | IEC61800-3, 2. enviroment | |
| Brake Chopper | 0 | No Brake | |
| Electrical Modification | S | 6-pulse with choke | |
| Card Modifications | V- | DirectConn. w Varnished Boards | |
| Shipping Package | +GSCB | Cardboard box as Shipping pack | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGLM | Metric conduit plate | |
| Option Slot A | A8 | OPTA1 w.galv.isol 2AI&1AO | |
| Option Slot B | AF | STO, ATEX therm | |
| Option Slot C | BH | 3 temp meas channels | |
| Option Slot D | 00 | No board | |
| Option Slot E | E5 | PROFIBUS DP with Sub-D9 | |
| Firmware language package | +FL28 | UK,HU,DE,RO,SK;EastEur | |
| Documentation Level | +DPAP | Paper manuals | |
| Documentation Lang. Preference | +DLUK | English | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | NONE | no software license | |
| Application | +APFIFF40 | SIA II application NXP,NXI | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC1 | no additional labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | FR08 | Frame 08 | |
| Power rating | 75K | 75 kW/100 HP | |
| Sub family identification | NONE | Normal customer ordered | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DP-008062 | ||
| Typecode Part 2 | -000004750 | ||
| Salestext | FR0800806-2L | FR0800806-2L | |
| Modelcode01 | NXP00806-A2L0SSV- | ||
| Modelcode02 | A8AFBH00E5+QGLM | ||
| Modelcode03 | +FL28 | ||
| Modelcode04 | +APFIFF40 | ||
| Modelcode05 | +DPAP | ||
| Calculated Net Weight [kg] | 58 | ||
| Calculated Gross Weight [kg] | 59 | ||
| Motor Power Low Overload [kW] | 75 | 75 | |
| Motor Power High Overload [kW] | 55 | 55 | |
| Dimensions WxHxD [mm] | 288X758X344 | 288X758X344 | |
| Continuous Current (HO) [A] | 62 | 62 | |
| ATEX Marking 1 | ATEX: II (2) GD | ATEX: II (2) GD | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stockcode part 1 | 7DP-008062-118G1Z | ||
| Stock Code | 7DP-008062 | 7DP-008062 | |
| check if complete | OK | OK | |
| Salescode part 2 | A8AFBH00E5+QGLM | ||
| STAT NO | 03760 | ||
| Calculated Net Weight | 58 | ||
| Calculated Package Weight | 1 | ||
| Help Counter | 1 | ||
| Plant from Orderline | C501 | C501 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Salescode part 3 | +FL28 | +FL28 |
