Description
NXP01685-A0H0SSV-A1AFBH00E5 +FL21 +DLFI+LPC2+SPXE
Vacon NXP Frequency Converter
380 – 500 Vac (465-800 Vdc), 168 Amp, IP00
Alpha-numeric display
IEC61800-3
No Brake
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: STO, ATEX therm
C Slot: 3 temp meas channels
D Slot: No board
E Slot: PROFIBUS DP with Sub-D9
Manual: Finnish
Frame 08
ATEX: II (2) GD
Other options according to Model code
Model code:
NXP01685-A0H0SSV-A1AFBH00E5+FL21+DLFI+LPC2+SPXE

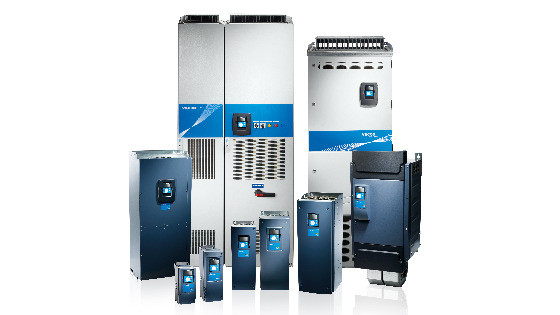

The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
...
| Gross weight | 59 Kilogram | ||
| Net weight | 58 Kilogram | ||
| EAN | 5715253175911 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXP | NXP Frequency Converter | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | S | Standard air cooled drive | |
| Mains voltage | 5- | 380 – 500 Vac (465-800 Vdc) | |
| Current | 0168 | 168 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | 0 | IP00 | |
| EMC emission levels | H | IEC61800-3 | |
| Brake Chopper | 0 | No Brake | |
| Electrical Modification | S | 6-pulse with choke | |
| Card Modifications | V- | DirectConn. w Varnished Boards | |
| Shipping Package | +GSCB | Cardboard box as Shipping pack | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGLC | Inch conduit plate | |
| Option Slot A | A1 | 6DI,DO,2AI,1AO,+10Vr,+24V | |
| Option Slot B | AF | STO, ATEX therm | |
| Option Slot C | BH | 3 temp meas channels | |
| Option Slot D | 00 | No board | |
| Option Slot E | E5 | PROFIBUS DP with Sub-D9 | |
| Firmware language package | +FL21 | UK,FI,SE,DK,DE;Nordic | |
| Documentation Level | +DPAP | Paper manuals | |
| Documentation Lang. Preference | +DLFI | Finnish | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | NONE | no software license | |
| Application | +A000 | No Special Application | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC2 | Two sets of product labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | FR08 | Frame 08 | |
| Sub family identification | +SPXE | Sub-config for ExtDeliPartner | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DP-016850 | ||
| Typecode Part 2 | -000084327 | ||
| Salestext | FR0801685-0H | FR0801685-0H | |
| Modelcode01 | NXP01685-A0H0SSV- | ||
| Modelcode02 | A1AFBH00E5 | ||
| Modelcode03 | +FL21 | ||
| Modelcode05 | +DLFI | ||
| Modelcode06 | +LPC2+SPXE | ||
| Calculated Net Weight [kg] | 58 | ||
| Calculated Gross Weight [kg] | 59 | ||
| Motor Power Low Overload [kW] | 90 | 90 | |
| Motor Power High Overload [kW] | 75 | 75 | |
| Dimensions WxHxD [mm] | 288X758X344 | 288X758X344 | |
| Continuous Current (NO) [A] | 170 | 170 | |
| Continuous Current (HO) [A] | 140 | 140 | |
| ATEX Marking 1 | ATEX: II (2) GD | ATEX: II (2) GD | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stock Code | 7DP-016850 | 7DP-016850 | |
| check if complete | OK | OK | |
| Salescode part 2 | A1AFBH00E5 | ||
| STAT NO | 03236 | ||
| Calculated Package Weight | 1 | ||
| Help Counter | 1 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Recommended Plant | ERR01 | ERR01 | |
| Salescode part 3 | +FL21 | +FL21 |
