Description
NXP02615-A0N0NPV-A1AF00B100 +FL23 +DLDE
Vacon NXP Frequency Converter
380 – 500 Vac (465-800 Vdc), 261 Amp, IP00
Alpha-numeric display
no EMC protection
No Brake
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: STO, ATEX therm
C Slot: No board
D Slot: 6 programmableDI/DO
E Slot: No board
Manual: German
Frame 05 liquid cooled
ATEX: II (2) GD
Other options according to Model code
Model code:
NXP02615-A0N0NPV-A1AF00B100+FL23+DLDE

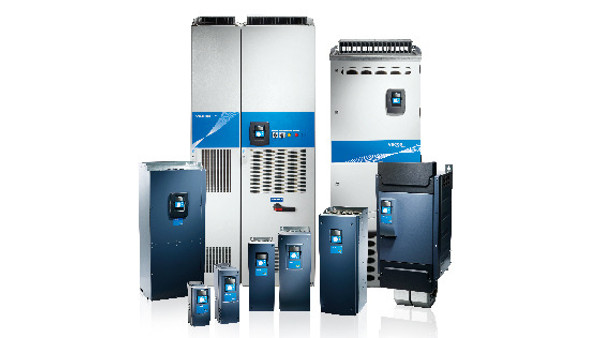

The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
...
| Gross weight | 41 Kilogram | ||
| Net weight | 40 Kilogram | ||
| EAN | 5710108834302 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXP | NXP Frequency Converter | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | P | LiquidCooled w. nickel element | |
| Mains voltage | 5- | 380 – 500 Vac (465-800 Vdc) | |
| Current | 0261 | 261 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | 0 | IP00 | |
| EMC emission levels | N | no EMC protection | |
| Brake Chopper | 0 | No Brake | |
| Electrical Modification | N | 6-puls No choke for Spare unit | |
| Card Modifications | V- | DirectConn. w Varnished Boards | |
| Shipping Package | +GSCB | Cardboard box as Shipping pack | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGNO | No conduit plate | |
| Option Slot A | A1 | 6DI,DO,2AI,1AO,+10Vr,+24V | |
| Option Slot B | AF | STO, ATEX therm | |
| Option Slot C | 00 | No board | |
| Option Slot D | B1 | 6 programmableDI/DO | |
| Option Slot E | 00 | No board | |
| Firmware language package | +FL23 | UK,NL,DE,FR,ITWestEurII | |
| Documentation Level | +DPAP | Paper manuals | |
| Documentation Lang. Preference | +DLDE | German | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | NONE | no software license | |
| Application | +A000 | No Special Application | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC1 | no additional labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | CH05 | Frame 05 liquid cooled | |
| Power rating | 132 | 132 kW/200 HP | |
| Sub family identification | NONE | Normal customer ordered | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DP-026150 | ||
| Typecode Part 2 | -000005898 | ||
| Salestext | CH0502615-0N | CH0502615-0N | |
| Modelcode01 | NXP02615-A0N0NPV- | ||
| Modelcode02 | A1AF00B100 | ||
| Modelcode03 | +FL23 | ||
| Modelcode05 | +DLDE | ||
| Calculated Net Weight [kg] | 40 | ||
| Calculated Gross Weight [kg] | 41 | ||
| Motor Power Low Overload [kW] | 132 | 132 | |
| Motor Power High Overload [kW] | - | - | |
| Dimensions WxHxD [mm] | 246X553X264 | 246X553X264 | |
| Continuous Current (NO) [A] | 261 | 261 | |
| Continuous Current (HO) [A] | - | - | |
| ATEX Marking 1 | ATEX: II (2) GD | ATEX: II (2) GD | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stockcode part 1 | 7DW-026150-117EAX | ||
| Stock Code | 7DP-026150 | 7DP-026150 | |
| check if complete | OK | OK | |
| Salescode part 2 | A1AF00B100 | ||
| STAT NO | 02771 | ||
| Calculated Net Weight | 40 | ||
| Calculated Package Weight | 1 | ||
| Help Counter | 1 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Recommended Plant | ERR01 | ERR01 | |
| Salescode part 3 | +FL23 | +FL23 |
