Description
NXP03855-A5T1OSB-A1AFA500EC +APFIFF09 +DPAP+DLIT
Vacon NXP Frequency Converter
380 – 500 Vac (465-800 Vdc), 385 Amp, IP54/NEMA12
Alpha-numeric display
IEC61800-3 for IT networks
Integrated Brake chopper
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: STO, ATEX therm
C Slot: 3DI(Enc.10-24V),15/24Vout
D Slot: No board
E Slot: EtherCAT
Manual: Italian
Frame 10
ATEX: II (2) GD
Other options according to Model code
Model code:
NXP03855-A5T1OSB-A1AFA500EC+APFIFF09+DPAP+DLIT

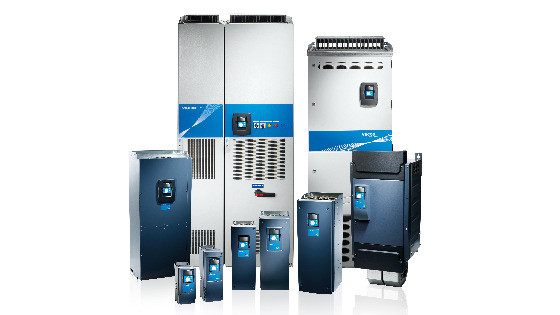

The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
...
| Gross weight | 341 Kilogram | ||
| Net weight | 340 Kilogram | ||
| EAN | 5714853171965 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXP | NXP Frequency Converter | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | S | Standard air cooled drive | |
| Mains voltage | 5- | 380 – 500 Vac (465-800 Vdc) | |
| Current | 0385 | 385 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | 5 | IP54/NEMA12 | |
| EMC emission levels | T | IEC61800-3 for IT networks | |
| Brake Chopper | 1 | Integrated Brake chopper | |
| Electrical Modification | O | Std. + input switch | |
| Card Modifications | B- | Fiber+IntegrControl+varn.PCB | |
| Shipping Package | +GSCB | Cardboard box as Shipping pack | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGNO | No conduit plate | |
| Option Slot A | A1 | 6DI,DO,2AI,1AO,+10Vr,+24V | |
| Option Slot B | AF | STO, ATEX therm | |
| Option Slot C | A5 | 3DI(Enc.10-24V),15/24Vout | |
| Option Slot D | 00 | No board | |
| Option Slot E | EC | EtherCAT | |
| Firmware language package | +FL22 | UK,FR,IT,ES,PT;WestEur | |
| Documentation Level | +DPAP | Paper manuals | |
| Documentation Lang. Preference | +DLIT | Italian | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | NONE | no software license | |
| Application | +APFIFF09 | Marine application NXP,NXS | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC1 | no additional labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | FR10 | Frame 10 | |
| Power rating | 200 | 200 kW/300 HP | |
| Sub family identification | NONE | Normal customer ordered | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DP-038555 | ||
| Typecode Part 2 | -000007906 | ||
| Salestext | FR1003855-5T | FR1003855-5T | |
| Modelcode01 | NXP03855-A5T1OSB- | ||
| Modelcode02 | A1AFA500EC | ||
| Modelcode04 | +APFIFF09 | ||
| Modelcode05 | +DPAP+DLIT | ||
| Calculated Net Weight [kg] | 340 | ||
| Calculated Gross Weight [kg] | 341 | ||
| Motor Power Low Overload [kW] | 200 | 200 | |
| Motor Power High Overload [kW] | 160 | 160 | |
| Dimensions WxHxD [mm] | 595X2018X602 | 595X2018X602 | |
| Continuous Current (NO) [A] | 385 | 385 | |
| Continuous Current (HO) [A] | 300 | 300 | |
| ATEX Marking 1 | ATEX: II (2) GD | ATEX: II (2) GD | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stockcode part 1 | 7DP-038555-11889K | ||
| Stock Code | 7DP-038555 | 7DP-038555 | |
| check if complete | OK | OK | |
| Salescode part 2 | A1AFA500EC | ||
| STAT NO | 03766 | ||
| Calculated Net Weight | 340 | ||
| Calculated Package Weight | 1 | ||
| Help Counter | 1 | ||
| Plant from Orderline | C501 | C501 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Salescode part 3 | +APFIFF09 | +APFIFF09 |
