Description
NXP10305-A0T0IWG-ANAF0000EA +FL23+GSNT +DLDE+LPC2+SPXE

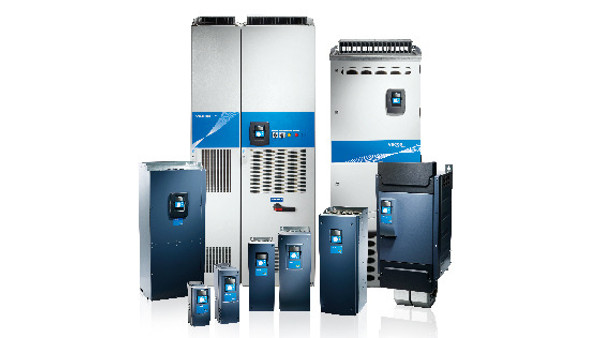

Vacon NXP Frequency Converter
380 – 500 Vac (465-800 Vdc), 1030 Amp, IP00
Alpha-numeric display
IEC61800-3 for IT networks
No Brake
A Slot: 6DI,2AI,2AO,10/-10Vref,24V
B Slot: STO, ATEX therm
C Slot: No board
D Slot: No board
E Slot: Advanced 2-port ethernet
Manual: German
Frame 63 liquid cooled
ATEX: II (2) GD
Other options according to Model code
Model code:
NXP10305-A0T0IWG-ANAF0000EA+FL23+GSNT+DLDE+LPC2+SPXE
The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
...
| Gross weight | 121 Kilogram | ||
| Net weight | 120 Kilogram | ||
| EAN | 5715253584201 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXP | NXP Frequency Converter | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | W | Liquid cooling | |
| Mains voltage | 5- | 380 – 500 Vac (465-800 Vdc) | |
| Current | 1030 | 1030 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | 0 | IP00 | |
| EMC emission levels | T | IEC61800-3 for IT networks | |
| Brake Chopper | 0 | No Brake | |
| Electrical Modification | I | INU, no charging circuit | |
| Card Modifications | G- | FiberConnection+Varnished PCB | |
| Shipping Package | +GSNT | Without packaging | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGNO | No conduit plate | |
| Option Slot A | AN | 6DI,2AI,2AO,10/-10Vref,24V | |
| Option Slot B | AF | STO, ATEX therm | |
| Option Slot C | 00 | No board | |
| Option Slot D | 00 | No board | |
| Option Slot E | EA | Advanced 2-port ethernet | |
| Firmware language package | +FL23 | UK,NL,DE,FR,ITWestEurII | |
| Documentation Level | +DPAP | Paper manuals | |
| Documentation Lang. Preference | +DLDE | German | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | NONE | no software license | |
| Application | +A000 | No Special Application | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC2 | Two sets of product labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | CH63 | Frame 63 liquid cooled | |
| Sub family identification | +SPXE | Sub-config for ExtDeliPartner | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DP-103050 | ||
| Typecode Part 2 | -000129754 | ||
| Salestext | CH6310305-0T | CH6310305-0T | |
| Modelcode01 | NXP10305-A0T0IWG- | ||
| Modelcode02 | ANAF0000EA | ||
| Modelcode03 | +FL23 | ||
| Modelcode04 | +GSNT | ||
| Modelcode05 | +DLDE | ||
| Modelcode06 | +LPC2+SPXE | ||
| Calculated Net Weight [kg] | 120 | ||
| Calculated Gross Weight [kg] | 121 | ||
| Motor Power Low Overload [kW] | 560 | 560 | |
| Motor Power High Overload [kW] | 500 | 500 | |
| Dimensions WxHxD [mm] | 505X923X375 | 505X923X375 | |
| Continuous Current (NO) [A] | 936 | 936 | |
| Continuous Current (HO) [A] | 687 | 687 | |
| ATEX Marking 1 | ATEX: II (2) GD | ATEX: II (2) GD | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stock Code | 7DP-103050 | 7DP-103050 | |
| check if complete | OK | OK | |
| Salescode part 2 | ANAF0000EA | ||
| STAT NO | 02854 | ||
| Calculated Package Weight | 1 | ||
| Help Counter | 1 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Recommended Plant | ERR01 | ERR01 | |
| Salescode part 3 | +FL23 | +FL23 |
