Description
NXP23406-A0T1TWG-A1A2A5B5E9 +APFIFF09 +DLFR+GAMA
Vacon NXP Frequency Converter
525 – 690 Vac (640-1100 Vdc), 2340 Amp, IP00
Alpha-numeric display
IEC61800-3 for IT networks
Integrated Brake chopper
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: 2RO(NO/NC)
C Slot: 3DI(Enc.10-24V),15/24Vout
D Slot: 3RO(NO)
E Slot: 2-port ethernet
Manual: French
2xFrame 74 liquid cooled
Other options according to Model code
Model code:
NXP23406-A0T1TWG-A1A2A5B5E9+APFIFF09+DLFR+GAMA

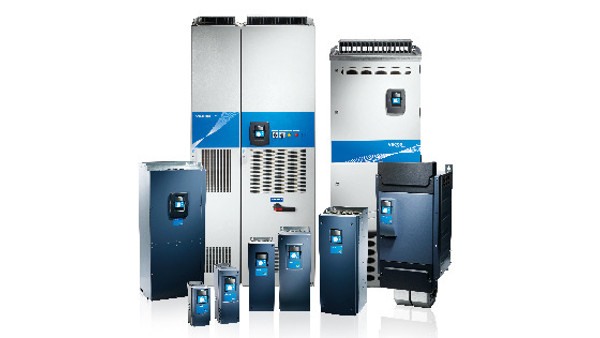

The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
...
| Gross weight | 1081 Kilogram | ||
| Net weight | 1080 Kilogram | ||
| EAN | 5714853890767 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXP | NXP Frequency Converter | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | W | Liquid cooling | |
| Mains voltage | 6- | 525 – 690 Vac (640-1100 Vdc) | |
| Current | 2340 | 2340 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | 0 | IP00 | |
| EMC emission levels | T | IEC61800-3 for IT networks | |
| Brake Chopper | 1 | Integrated Brake chopper | |
| Electrical Modification | T | 12-pulse with choke | |
| Card Modifications | G- | FiberConnection+Varnished PCB | |
| Shipping Package | +GSCB | Cardboard box as Shipping pack | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGNO | No conduit plate | |
| Option Slot A | A1 | 6DI,DO,2AI,1AO,+10Vr,+24V | |
| Option Slot B | A2 | 2RO(NO/NC) | |
| Option Slot C | A5 | 3DI(Enc.10-24V),15/24Vout | |
| Option Slot D | B5 | 3RO(NO) | |
| Option Slot E | E9 | 2-port ethernet | |
| Firmware language package | +FL22 | UK,FR,IT,ES,PT;WestEur | |
| Documentation Level | +DPAP | Paper manuals | |
| Documentation Lang. Preference | +DLFR | French | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | NONE | no software license | |
| Application | +APFIFF09 | Marine application NXP,NXS | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC1 | no additional labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | +GAMA | MarineAppr w case specific req | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | DH74 | 2xFrame 74 liquid cooled | |
| Sub family identification | NONE | Normal customer ordered | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DP-234060 | ||
| Typecode Part 2 | -000063142 | ||
| Salestext | DH7423406-0T | DH7423406-0T | |
| Modelcode01 | NXP23406-A0T1TWG- | ||
| Modelcode02 | A1A2A5B5E9 | ||
| Modelcode04 | +APFIFF09 | ||
| Modelcode05 | +DLFR+GAMA | ||
| Calculated Net Weight [kg] | 1080 | ||
| Calculated Gross Weight [kg] | 1081 | ||
| Motor Power Low Overload [kW] | 2100 | 2100 | |
| Motor Power High Overload [kW] | 1900 | 1900 | |
| Dimensions WxHxD [mm] | SEE DRAWING | SEE DRAWING | |
| Continuous Current (NO) [A] | 2127 | 2127 | |
| Continuous Current (HO) [A] | 1560 | 1560 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stock Code | 7DP-234060 | 7DP-234060 | |
| check if complete | OK | OK | |
| Salescode part 2 | A1A2A5B5E9 | ||
| STAT NO | 02925 | ||
| Calculated Package Weight | 1 | ||
| Help Counter | 1 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Recommended Plant | ERR01 | ERR01 | |
| Salescode part 3 | +APFIFF09 | +APFIFF09 |
