Description
OGDHK231K131I12L06RXS21P3A9010H1BXXX1XXX

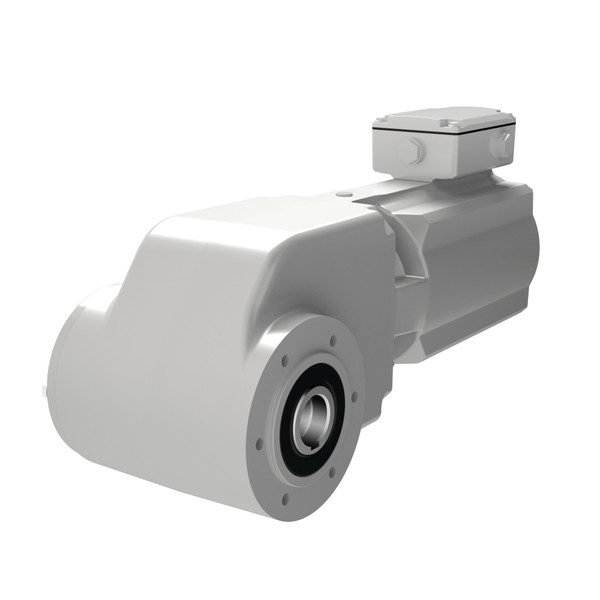

VLT® OneGearDrive
Hygienic, max 2.3 KW (V210),
31.13, 1 1/4 Inches,Stainless steel,
With CSA/UL, Vertical, motor up,Without brake,
Motor+plug+conn, no cable
Model code:
OGDHK231K131I12L06RXS21P3A9010H1BXXX1XXX
The VLT® OneGearDrive is a flexible, energy- efficient drive system
that significantly reduces the number of drive variants across a typical
...
| Gross weight | 26 Kilogram | ||
| Net weight | 25 Kilogram | ||
| EAN | 5710108817411 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | OGD | VLT® OneGearDrive® | |
| Product Variant | H | Hygienic | |
| Gear Type | K | Bevel Gear | |
| Size | 2 | V210 | |
| Gear Ratio | 31K13 | 31.13 | |
| Output Shaft Design | 1 | Hollow shaft | |
| Output Shaft Size | I1 | 1 1/4 Inches | |
| Output Shaft Material | 2 | Stainless steel | |
| Motor Size | L06 | max 2.3 KW (V210) | |
| Reserved RX | RX | Reserved X | |
| Motor Connection | S2 | Motor+plug+conn, no cable | |
| Connector Position | 1 | Top | |
| Installation Position | P3 | Vertical, motor up | |
| Surface Coating | A | Aseptic | |
| RAL Color Code | 9010 | Standard white | |
| Lubricants | H1 | Food grade oil | |
| Brake | BXXX | Without brake | |
| CSA / UL | 1 | With CSA/UL | |
| Reserved A | X | Reserved A | |
| Reserved B | X | Reserved B | |
| Reserved C | X | Reserved C | |
| Typecode Part 2 | A9010H1BXXX1XXX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Modelcode01 | OGDHK231K131I12L06RXS21P3 | ||
| Modelcode02 | A9010H1BXXX1XXX | ||
| Calculated Gross Weight [kg] | 26 | ||
| Calculated Net Weight [kg] | 25 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Recommended Plant | ERR01 | ERR01 | |
| Typecode Part 1 | OGDHK231K131I12L06RXS21P3 |
