Description
OGDSK214K131402L06RXTB1P2A9010H1B180XXXX

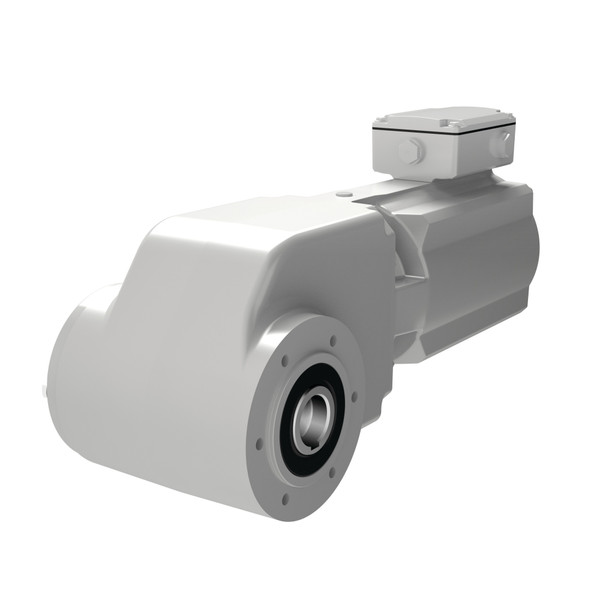

VLT® OneGearDrive
Standard, max 2.3 KW (V210),
14.13, 40 mm,Stainless steel,
Without CSA/UL, Horiz., conn. up or down,180V DC brake (400V AC),
Terminal Box
Model code:
OGDSK214K131402L06RXTB1P2A9010H1B180XXXX
The VLT® OneGearDrive is a flexible, energy- efficient drive system
that significantly reduces the number of drive variants across a typical
...
| Gross weight | 27 Kilogram | ||
| Net weight | 26 Kilogram | ||
| EAN | 5710108041151 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | OGD | VLT® OneGearDrive® | |
| Product Variant | S | Standard | |
| Gear Type | K | Bevel Gear | |
| Size | 2 | V210 | |
| Gear Ratio | 14K13 | 14.13 | |
| Output Shaft Design | 1 | Hollow shaft | |
| Output Shaft Size | 40 | 40 mm | |
| Output Shaft Material | 2 | Stainless steel | |
| Motor Size | L06 | max 2.3 KW (V210) | |
| Reserved RX | RX | Reserved X | |
| Motor Connection | TB | Terminal Box | |
| Connector Position | 1 | Top | |
| Installation Position | P2 | Horiz., conn. up or down | |
| Surface Coating | A | Aseptic | |
| RAL Color Code | 9010 | Standard white | |
| Lubricants | H1 | Food grade oil | |
| Brake | B180 | 180V DC brake (400V AC) | |
| CSA / UL | X | Without CSA/UL | |
| Reserved A | X | Reserved A | |
| Reserved B | X | Reserved B | |
| Reserved C | X | Reserved C | |
| Typecode Part 2 | A9010H1B180XXXX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Modelcode01 | OGDSK214K131402L06RXTB1P2 | ||
| Modelcode02 | A9010H1B180XXXX | ||
| Calculated Gross Weight [kg] | 27 | ||
| Calculated Net Weight [kg] | 26 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Plant from Orderline | E102 | E102 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| DrivePro category | EXCH | Exchange Unit | |
| Typecode Part 1 | OGDSK214K131402L06RXTB1P2 |
