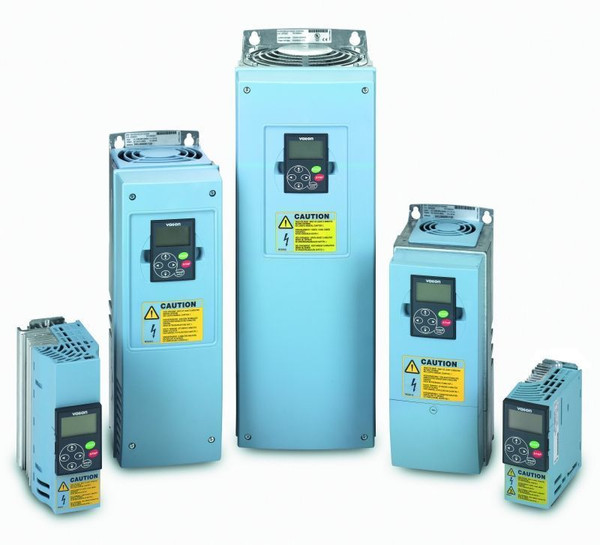

VACON NXL NXL00465C5H1SSS00 - NXL00465C5H1SSS0000 - NXL00465C5H1SSS

Vacon NXL IP54 AC Frequency Inverter for 18.5kW (25HP) 400V 3 Ph motor in VxF or Sensorless Vector control to 38A at high overload, or 22kW (30HP) to 46A when Fan/Pump rated. Simple to set up for a standard AC Induction motor.

Frame 6 - 195mm Wide x 237mm Deep x 519mm High, IP54

Overload - 200% Output Current x 2 seconds and 150% x 60 seconds at High Overload, 110% Output Current x 60 seconds when Fan/Pump rated.
Speed Control Range - 0-320 Hz (standard)
Braking - To 21 Ohm minimum external resistor (not supplied) - See the Resistor options linked below or use the 'Which Resistor' button on this page.

Features - 2 Analogue Inputs, 3 x Digital Inputs, 1 x Analogue Output, 1 Relay Contact set and RS485 Communications.
Parameter setting via keypad

Input Current - as output current.
Input Voltage - 380-500V -15%/+10% at 50-60Hz (± 10%)

P/N: VACON NXL00465C5H1SSS00 or NXL00465C5H1SSS0000 or NXL00465C5H1SSS
