Description
Frequency converter
VACON0100-3L-0460-5-R02+IP00+POCM+PODU+A1133+QEPO+LPC2+SPXE

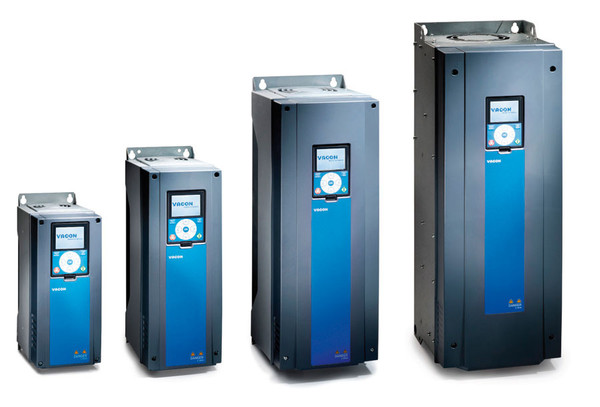

VACON 100 Industrial
380-500 Vac 460 AmpIP00
Graphical Keypad MK01
EMC C4 System Component
B Slot: F3,3 Relay board
C Slot: No board
D Slot: No board
E Slot: No board
Fieldbus: IndEth (ProfinetIO,EthernetIP)
Manual: English
Frame 10
Other options according to Model code
Model code:
VACON0100-3L-0460-5-R02+IP00+POCM+PODU+A1133+QEPO+LPC2+SPXE
VACON® 100 AC drives are ideal for saving energy, optimizing processcontrol and improving productivity. They are designed for multi-purposeuse while remaining easy to install, easy to com...
| Gross weight | 222 Kilogram | ||
| Net weight | 221 Kilogram | ||
| EAN | 5715253231235 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Segment | NONE | VACON 100 Industrial | |
| Region Code | -R02 | R02 North America | |
| Mains voltage | -5 | 380-500 Vac | |
| Current rating | -0460 | 460 Amp | |
| Installation options | -DM | DM Drive Module | |
| Enclosure | +IP00 | IP00 | |
| Control panel | +HMGR | Graphical Keypad MK01 | |
| EMC emission limit category | +EMC4 | EMC C4 System Component | |
| Common mode filter (for DM) | +POCM | Common mode filter | |
| DUT filter (for DM) | +PODU | du/dt | |
| Brake chopper | +DBNO | No dynamic braking device | |
| Real time clock option | +SRNO | No Battery for real time clock | |
| Configurable power range | NONE | None | |
| Power connections | +P000 | No Power options (+P000) | |
| Cable entry | +Q000 | No option | |
| Additional Equipment B | +QEPO | Hardware extension box | |
| Additonal Equipment C | +Q000 | No additonal option for Qxxx_C | |
| Shipping package | +GSCB | Cardboard Box as Shipping pack | |
| Marine construction | +E000 | no option | |
| B-Slot Option Board | +SBF3 | F3,3 Relay board | |
| C- Slot Option Board | +SC00 | No board | |
| D-Slot Option Board | +SD00 | No board | |
| E-Slot Option Board | +SE00 | No board | |
| Internal FB selection | +FBIE | IndEth (ProfinetIO,EthernetIP) | |
| Documentation level | +DPAP | Paper Manuals | |
| Document language preference | +DLUK | English | |
| Firmware Language Pack | +FL03 | UK, ES, FR, IT, NL, PT lang | |
| Application | +A1133 | Customized applSW for Wärtsilä | |
| Parameter Set | +L0000 | No application parameter set | |
| Motor parameter default freq | +LS60 | 60 Hz def motor freq settings | |
| Unit for measure for display | +LSUS | US Customary Units of Measure | |
| Labeling options | +LPC2 | Two sets of product labels | |
| UL approval | +GAUL | UL Approval (+GAUL) | |
| Marine approval | NONE | None | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| KC approval | +GAKC | KC Approval | |
| Ukrainian approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Auxilary power supply | +C000 | no option | |
| DC power supply for aux device | +C000 | no option | |
| AC socket for aux devices | +C000 | no option | |
| Input Devices | NONE | none_ | |
| Common mode filter (for ED) | +P000 | no option | |
| DU/DT, Sine filter (for ED) | +P000 | no option | |
| Terminal Options | NONE | none_ | |
| Door Equipments | +C000 | no option | |
| Cabinet heater | +C000 | no option | |
| Cabinet light | +C000 | no option | |
| Motor heater control | +C000 | no option | |
| Emergency stop options | +C000 | no option | |
| Insulation fault sensor | +C000 | no option | |
| Cabling from top | +C000 | no option | |
| Back channel cooling | +C000 | no option | |
| Cabinet Plinth | +C000 | no option | |
| Empty extension segment | NONE | None | |
| Standardized cabinet solution | NONE | None | |
| Engineered cabinet solution | NONE | None | |
| Product Group | VACON | VACON | |
| Product Series | 0100 | Vacon 100 series | |
| Phase | -3L | 3 Phase AC Input | |
| Customized | +BM26 | Vacon 100 | |
| Main Circuit | +M000 | NONE | |
| Firmware | +F0072 | Vacon0100 Software package | |
| Max output frequency | NONE | None | |
| Terminal Box | +T000 | NONE | |
| Bypass Control Operation Mode | NONE | none_ | |
| Bypass Input Type | NONE | none_ | |
| Bypass power connection type | NONE | none_ | |
| CE approval | +GACE | CE Approval (+GACE) | |
| ATEX Approval | NONE | None | |
| County Specific Approval | NONE | None | |
| Warrenty time | +WT01 | Warranty 12/18 months (+WT01) | |
| Frame Size | MR10 | Frame 10 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Modelcode01 | VACON0100-3L-0460-5 | ||
| Modelcode02 | -R02+IP00+POCM+PODU+A1133+QEPO | ||
| Modelcode03 | +LPC2+SPXE | ||
| Calculated Net Weight [kg] | 221 | ||
| Calculated Gross Weight [kg] | 222 | ||
| Motor Power Low Overload [kW] | 250 | 250 | |
| Motor Power High Overload [kW] | 200 | 200 | |
| Dimensions WxHxD [mm] net | 507 X 1463 X 525 | 507 X 1463 X 525 | |
| Dimensions WxHxD [mm] Gross | 789 X 1170 X 1700 | 789 X 1170 X 1700 | |
| Continuous Current (NO) [A] | 460 | 460 | |
| Continuous Current (HO) [A] | 385 | 385 | |
| Motor Power HP Low Overload | 350 | 350 | |
| Motor Power HP High Overload | 300 | 300 | |
| Typecode Part 1 | 70-AB3L04605W10B040BM26 | ||
| Typecode Part 2 | -000091602 | ||
| check if complete | OK | OK | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Help Counter | 10 | ||
| Help Counter | 3 | ||
| Sub family identification | +SPXE | Sub-config for ExtDeliPartner | |
| Recommended Plant | ERR01 | ERR01 | |
| ECCN US | 3A999.a | 3A999.a | |
| ECCN EU | Y901 | Y901 |
