Description

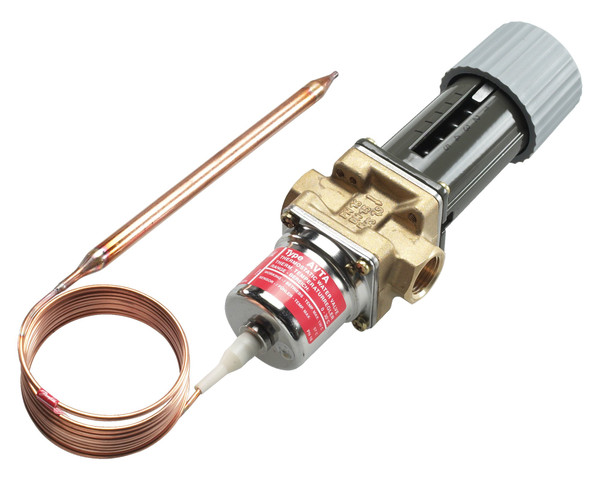

Product name: Thermo. operated water valve, Type: AVTA 15, Connection type: G, Connection Internal/External: Internal, Kv value [m³/h]: 1.900, Charge type: Mass
Product details
| Gross weight | 1.53 kg |
| Net weight | 1.13 kg |
| EAN | 5702423002740 |
| Gross weight | 1.53 kg |
| Net weight | 1.13 kg |
| EAN | 5702423002740 |
| Approval | EAC LLC CDC TYSK PED RoHS RoHS China |
| Body material | Brass |
| Cap. tube length fraction [in] | 78 3/4 in |
| Capillary tube gland Int/Ext | Internal |
| Capillary tube gland size [in] | 1/2 |
| Capillary tube gland standard | ISO 228-1 |
| Capillary tube gland type | G |
| Capillary tube length [mm] | 2000 mm |
| Charge type | Mass |
| Connection Internal/External | Internal |
| Connection size [in] | 1/2 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Cv value [gal/min] | 2.2 gal/min |
| Differential pressure [bar] [Max] | 10 bar |
| Differential pressure [bar] [Min] | 0 bar |
| Differential pressure [psi] [Max] | 145 psi |
| Differential pressure [psi] [Min] | 0 psi |
| Flow direction indicator | Embossed 1-way arrow |
| Kv value [m³/h] | 1.9 m3/h |
| Max. pressure on sensor [bar] | 25 bar |
| Max. pressure on sensor [psig] | 362.6 psig |
| Max. sensor temperature [°C] | 90 °C |
| Max. sensor temperature [°F] | 194 °F |
| Max. test pressure [bar] Pe | 25 bar |
| Max. test pressure [psig] | 362.6 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Media | Neutral media |
| Medium temperature range [°C] [Max] | 130 °C |
| Medium temperature range [°C] [Min] | -25 °C |
| Medium temperature range [°F] [Max] | 266 °F |
| Medium temperature range [°F] [Min] | -13 °F |
| Opening configuration | Opens on rising sensor temp. |
| Orifice size [mm] | 15 mm |
| Orifice size fraction [in] | 3/5 in |
| Packing format | Multi pack |
| Product accessories | Generic accessories Water valves accessories |
| Product description | Thermostatic valve |
| Product family name | AVTA |
| Product group | Water regulating valves |
| Product name | Thermo. operated water valve |
| Quantity per packing format | 10 pc |
| Sensor size (Ø x L) [in] | 3/8 x 7 3/32 in |
| Sensor size (Ø x L) [mm] | 9.5 x 180 mm |
| Serviceable | Water valve spare parts |
| Temperature range [°C] [Max] | 65 °C |
| Temperature range [°C] [Min] | 25 °C |
| Temperature range [°F] [Max] | 149 °F |
| Temperature range [°F] [Min] | 77 °F |
| Type | AVTA 15 |
