Description

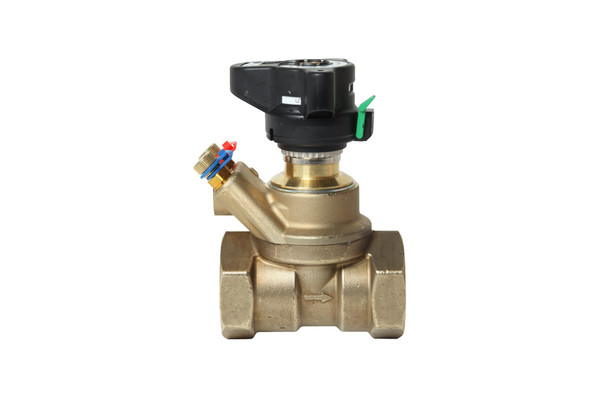

Product name: MSV-BD DN 40 Rp 1½ Internal thread
Product details
| Gross weight | 1.9 kg |
| Net weight | 1.91 kg |
| EAN | 5702420084862 |
| Gross weight | 1.9 kg |
| Net weight | 1.91 kg |
| EAN | 5702420084862 |
| Connection types | Internal thread |
| Description | MSV-BD DN 40, Internal thread, manual balancing valve |
| Differential pressure range [bar] [Max] | 2.5 bar |
| Drain function | Yes |
| Kvs values [m³/h] | 26 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Pressure class | PN 20 |
| Product group | Manual balancing |
| Product name | MSV-BD DN 40 Rp 1½ Internal thread |
| Setting scale | Yes |
| Shut-off function | Yes |
| Type | LENO MSV-BD |
| Valve body material | DZR brass |
| Valve size | DN 40 |
| Connection types | Internal thread |
| Description | MSV-BD DN 40, Internal thread, manual balancing valve |
| Differential pressure range [bar] [Max] | 2.5 bar |
| Drain function | Yes |
| Kvs values [m³/h] | 26 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Pressure class | PN 20 |
| Product group | Manual balancing |
| Product name | MSV-BD DN 40 Rp 1½ Internal thread |
| Setting scale | Yes |
| Shut-off function | Yes |
| Type | LENO MSV-BD |
| Valve body material | DZR brass |
| Valve size | DN 40 |
Product details
| Gross weight | 1.9 kg |
| Net weight | 1.91 kg |
| EAN | 5702420084862 |
| Gross weight | 1.9 kg |
| Net weight | 1.91 kg |
| EAN | 5702420084862 |
| Connection types | Internal thread |
| Description | MSV-BD DN 40, Internal thread, manual balancing valve |
| Differential pressure range [bar] [Max] | 2.5 bar |
| Drain function | Yes |
| Kvs values [m³/h] | 26 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Pressure class | PN 20 |
| Product group | Manual balancing |
| Product name | MSV-BD DN 40 Rp 1½ Internal thread |
| Setting scale | Yes |
| Shut-off function | Yes |
| Type | LENO MSV-BD |
| Valve body material | DZR brass |
| Valve size | DN 40 |
| Connection types | Internal thread |
| Description | MSV-BD DN 40, Internal thread, manual balancing valve |
| Differential pressure range [bar] [Max] | 2.5 bar |
| Drain function | Yes |
| Kvs values [m³/h] | 26 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Pressure class | PN 20 |
| Product group | Manual balancing |
| Product name | MSV-BD DN 40 Rp 1½ Internal thread |
| Setting scale | Yes |
| Shut-off function | Yes |
| Type | LENO MSV-BD |
| Valve body material | DZR brass |
| Valve size | DN 40 |
