Description

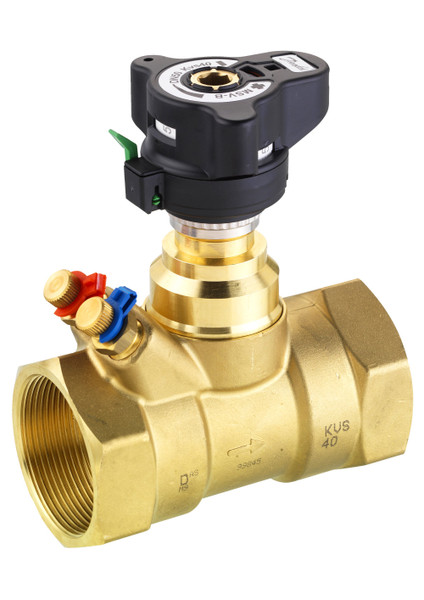

Product name: MSV-B DN 50 Rp 2 Internal thread
Product details
| Gross weight | 2.43 kg |
| Net weight | 2.38 kg |
| EAN | 5702420096520 |
| Gross weight | 2.43 kg |
| Net weight | 2.38 kg |
| EAN | 5702420096520 |
| Connection types | Internal thread |
| Description | MSV-B DN 50, Internal thread, manual balancing valve |
| Differential pressure range [bar] [Max] | 2.5 bar |
| Drain function | No |
| Kvs values [m³/h] | 40 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Pressure class | PN 20 |
| Product group | Manual balancing |
| Product name | MSV-B DN 50 Rp 2 Internal thread |
| Setting scale | Yes |
| Shut-off function | Yes |
| Type | LENO MSV-B |
| Valve body material | DZR brass |
| Valve size | DN 50 |
| Connection types | Internal thread |
| Description | MSV-B DN 50, Internal thread, manual balancing valve |
| Differential pressure range [bar] [Max] | 2.5 bar |
| Drain function | No |
| Kvs values [m³/h] | 40 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Pressure class | PN 20 |
| Product group | Manual balancing |
| Product name | MSV-B DN 50 Rp 2 Internal thread |
| Setting scale | Yes |
| Shut-off function | Yes |
| Type | LENO MSV-B |
| Valve body material | DZR brass |
| Valve size | DN 50 |
