Description

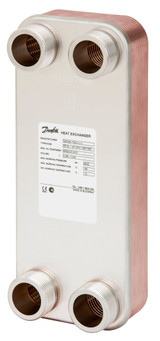

XB12L-2-70/70_2_25_G_2G5/4
Product details
| Gross weight | 12.86 kg |
| Net weight | 12.86 kg |
| EAN | 5702425109157 |
| Gross weight | 12.86 kg |
| Net weight | 12.86 kg |
| EAN | 5702425109157 |
| Approval type | PED 97/23/EC GOST/Russia SVGW/Switzerland VA/Denmark |
| Assembly site | 8220/Danfoss/Slovenia/Kamnik |
| Bolt holes mounting brackets diameter [mm] | 9 mm |
| Brazing material | Copper |
| Brazing material weight [Kg] | 0.016 kg |
| Channel volume per pcs side 1 [l] | 0.042 L |
| Channel volume per pcs side 2 [l] | 0.042 L |
| Channels | Large |
| Connection diameter side 1 [mm] | 30 mm |
| Connection diameter side 2 [mm] | 30 mm |
| Connection length side 1 [mm] | 25 mm |
| Connection length side 2 [mm] | 25 mm |
| Connection side 1 | G 1¼ |
| Connection side 2 | G 1¼ |
| Connection standard | DIN ISO 228/1 |
| Connection types | Thread |
| Cover plate thickness front [mm] | 2 mm |
| Cover plate thickness rear [mm] | 2 mm |
| Description | XB12L-2-70/70 G5/4 |
| Flow type | parallel |
| Heatsurface per plate [m²] | 0.034 m2 |
| Horizontal center porthole [mm] | 63 mm |
| Length between mounting holes [mm] | 65 mm |
| Number of passes | 2 |
| Number of plates | 140 |
| Number of plates maximum | 140 |
| Plate length [mm] | 286 mm |
| Plate material | 1.4404 |
| Plate pattern type | MPHE |
| Plate thickness [mm] | 0.25 mm |
| Plate type | L |
| Plate weight [Kg] | 61 kg |
| Plate width [mm] | 115 mm |
| Porthole diameter side 1 [mm] | 32 mm |
| Porthole diameter side 2 [mm] | 32 mm |
| Pressing depth [mm] | 1.5 mm |
| Product group | Brazed Heat Exchangers |
| Product Status | XI |
| Remarks | per channel |
| Test pressure side 1 [bar] [Max] | 43 bar |
| Total height without feet [mm] | 289 mm |
| Total width [mm] | 118 mm |
| Type | XB12L-2 |
| Vertical baseline to center porthole side 1 [mm] | 180 mm |
| Vertical baseline to center porthole side 2 [mm] | 180 mm |
| Vertical center porthole side 1 [mm] | 234 mm |
| Width between mounting holes [mm] | 60 mm |
| Working pressure side 1 [bar] [Max] | 25 bar |
| Working pressure side 2 [bar] [Max] | 25 bar |
| Working Temperature [°C] [Max] | 180 °C |
| Working Temperature [°C] [Min] | -10 °C |
