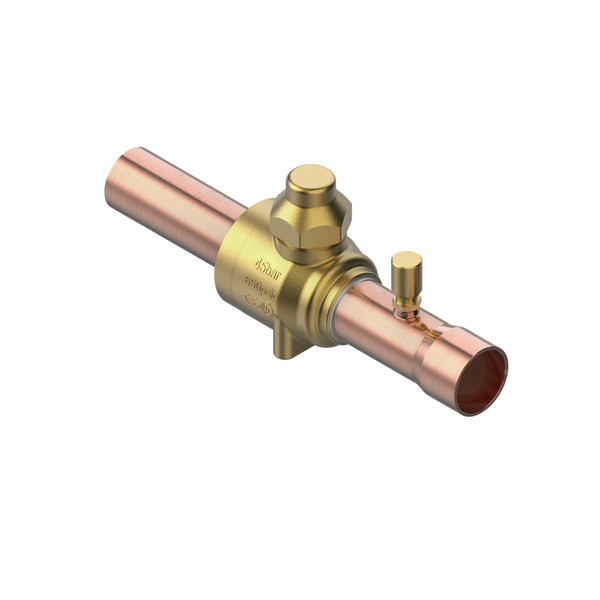

Description
Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODM
Product details
| Gross weight | 1.14 kg |
| Net weight | 0.9 kg |
| EAN | 5702428515528 |
| Gross weight | 1.14 kg |
| Net weight | 0.9 kg |
| EAN | 5702428515528 |
| Access port | YES |
| Approval | CE UL |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 71.96 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal (EN 378 comp) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 1 1/8 IN |
| Kv value [m³/h] | 62.25 m3/h |
| Max. test pressure [bar] | 65 bar |
| Max. test pressure [psig] | 940 psig |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 650 psig |
| Medium temp. range note | 100°C-150°C for short term use |
| Outlet connection type | SOLDER, ODM |
| Outlet size [in] | 1 1/8 IN |
| Packing format | Multi pack |
| Panel mounting option | M4 × 0.7 (2 PC) |
| Parts included | Schrader valve |
| Product accessories | BM/GBC valve accessories |
| Product description | Ball Valve |
| Product group | Shut-off and regulating valves |
| Product name | Shut-off ball valve |
| Quantity per packing format | 5 pc |
| Refrigerants | R134a R22/R407C R404A/R507 R407A R407F R410A R448A R449A R450A R452A R513A R407H R449B R515B R1234ze(E) |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 300 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | GBC 28s |
| Access port | YES |
| Approval | CE UL |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 71.96 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal (EN 378 comp) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 1 1/8 IN |
| Kv value [m³/h] | 62.25 m3/h |
| Max. test pressure [bar] | 65 bar |
| Max. test pressure [psig] | 940 psig |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 650 psig |
| Medium temp. range note | 100°C-150°C for short term use |
| Outlet connection type | SOLDER, ODM |
| Outlet size [in] | 1 1/8 IN |
| Packing format | Multi pack |
| Panel mounting option | M4 × 0.7 (2 PC) |
| Parts included | Schrader valve |
| Product accessories | BM/GBC valve accessories |
| Product description | Ball Valve |
| Product group | Shut-off and regulating valves |
| Product name | Shut-off ball valve |
| Quantity per packing format | 5 pc |
| Refrigerants | R134a R22/R407C R404A/R507 R407A R407F R410A R448A R449A R450A R452A R513A R407H R449B R515B R1234ze(E) |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 300 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | GBC 28s |
