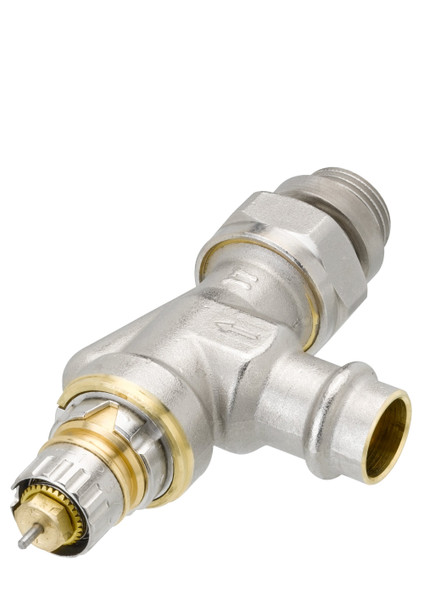

013G3239 Danfoss RA-N (Normal flow valves)

Write a Review
SKU:
013G3239
Availability:
2 - 3 weeks

Product details Gross weight 0.33 kg Net weight 0.33 kg EAN 5702420091747 Gross weight 0.33 kg Net weight 0.33 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
  • Security Image 1
Description

Product details

Gross weight 0.33 kg
Net weight 0.33 kg
EAN 5702420091747
Gross weight 0.33 kg
Net weight 0.33 kg
EAN 5702420091747



Connection size in 15 mm
Connection size out R ½
Differential pressure range [bar] [Max] 0.6 bar
Dimension 15
Flow temperature [°C] [Max] 120 °C
Kv measuring range 0.04 - 0.7
Kv value at setting 1 [m³/h] 0.04 m3/h
Kv value at setting 2 [m³/h] 0.09 m3/h
Kv value at setting 3 [m³/h] 0.16 m3/h
Kv value at setting 4 [m³/h] 0.25 m3/h
Kv value at setting 5 [m³/h] 0.36 m3/h
Kv value at setting 6 [m³/h] 0.43 m3/h
Kv value at setting 7 [m³/h] 0.52 m3/h
Kv value at setting N [m³/h] 0.73 m3/h
Kvs values [m³/h] 0.9 m3/h
Presetting yes
Product group Radiator Valves
Test pressure [bar] 16 bar
Type RA-N (Normal flow valves)
Working pressure [bar] [Max] 10 bar
Connection size in 15 mm
Connection size out R ½
Differential pressure range [bar] [Max] 0.6 bar
Dimension 15
Flow temperature [°C] [Max] 120 °C
Kv measuring range 0.04 - 0.7
Kv value at setting 1 [m³/h] 0.04 m3/h
Kv value at setting 2 [m³/h] 0.09 m3/h
Kv value at setting 3 [m³/h] 0.16 m3/h
Kv value at setting 4 [m³/h] 0.25 m3/h
Kv value at setting 5 [m³/h] 0.36 m3/h
Kv value at setting 6 [m³/h] 0.43 m3/h
Kv value at setting 7 [m³/h] 0.52 m3/h
Kv value at setting N [m³/h] 0.73 m3/h
Kvs values [m³/h] 0.9 m3/h
Presetting yes
Product group Radiator Valves
Test pressure [bar] 16 bar
Type RA-N (Normal flow valves)
Working pressure [bar] [Max] 10 bar
RA-N press-fit UK, sealing
