Description

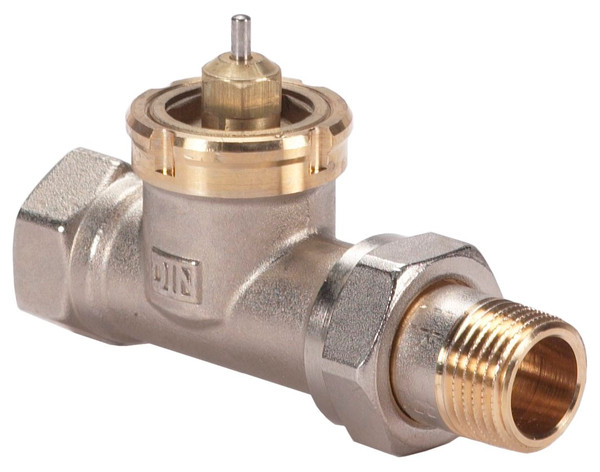

RAV PN10 15/2,8 2-way/2 int.thr Straight
Product details
| Gross weight | 0.44 kg |
| Net weight | 0.44 kg |
| EAN | 5702420012957 |
| Gross weight | 0.44 kg |
| Net weight | 0.44 kg |
| EAN | 5702420012957 |
| Application | Heating and cooling |
| Cavitation factor | 0.5 |
| Connection size | Inlet Rp 1/2 Outlet R 1/2 Inlet Rp 1/2, Outlet R 1/2 |
| Connection standard | ISO 7/1 |
| Connection types | Int. thread |
| Description | RAV PN10 15/2,8 2-way/2 int.thr Straight |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 0.2 bar |
| Flow characteristic | Linear |
| Function | Control valve |
| Kvs values [m³/h] | 2.8 m3/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | Circulation water |
| PN alternative VSP | 6 |
| Pressure nominal [bar] | 10 bar |
| Product group | Motorized control valves |
| Spindle position | Normally open |
| Stroke [mm] | 1.1 mm |
| Type | RAV |
| Valve body material | Brass W. No 2.0402 |
| Valve cone material | NBR rubber |
| Application | Heating and cooling |
| Cavitation factor | 0.5 |
| Connection size | Inlet Rp 1/2 Outlet R 1/2 Inlet Rp 1/2, Outlet R 1/2 |
| Connection standard | ISO 7/1 |
| Connection types | Int. thread |
| Description | RAV PN10 15/2,8 2-way/2 int.thr Straight |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 0.2 bar |
| Flow characteristic | Linear |
| Function | Control valve |
| Kvs values [m³/h] | 2.8 m3/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | Circulation water |
| PN alternative VSP | 6 |
| Pressure nominal [bar] | 10 bar |
| Product group | Motorized control valves |
| Spindle position | Normally open |
| Stroke [mm] | 1.1 mm |
| Type | RAV |
| Valve body material | Brass W. No 2.0402 |
| Valve cone material | NBR rubber |
Product details
| Gross weight | 0.44 kg |
| Net weight | 0.44 kg |
| EAN | 5702420012957 |
| Gross weight | 0.44 kg |
| Net weight | 0.44 kg |
| EAN | 5702420012957 |
| Application | Heating and cooling |
| Cavitation factor | 0.5 |
| Connection size | Inlet Rp 1/2 Outlet R 1/2 Inlet Rp 1/2, Outlet R 1/2 |
| Connection standard | ISO 7/1 |
| Connection types | Int. thread |
| Description | RAV PN10 15/2,8 2-way/2 int.thr Straight |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 0.2 bar |
| Flow characteristic | Linear |
| Function | Control valve |
| Kvs values [m³/h] | 2.8 m3/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | Circulation water |
| PN alternative VSP | 6 |
| Pressure nominal [bar] | 10 bar |
| Product group | Motorized control valves |
| Spindle position | Normally open |
| Stroke [mm] | 1.1 mm |
| Type | RAV |
| Valve body material | Brass W. No 2.0402 |
| Valve cone material | NBR rubber |
| Application | Heating and cooling |
| Cavitation factor | 0.5 |
| Connection size | Inlet Rp 1/2 Outlet R 1/2 Inlet Rp 1/2, Outlet R 1/2 |
| Connection standard | ISO 7/1 |
| Connection types | Int. thread |
| Description | RAV PN10 15/2,8 2-way/2 int.thr Straight |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 0.2 bar |
| Flow characteristic | Linear |
| Function | Control valve |
| Kvs values [m³/h] | 2.8 m3/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | Circulation water |
| PN alternative VSP | 6 |
| Pressure nominal [bar] | 10 bar |
| Product group | Motorized control valves |
| Spindle position | Normally open |
| Stroke [mm] | 1.1 mm |
| Type | RAV |
| Valve body material | Brass W. No 2.0402 |
| Valve cone material | NBR rubber |
