Description

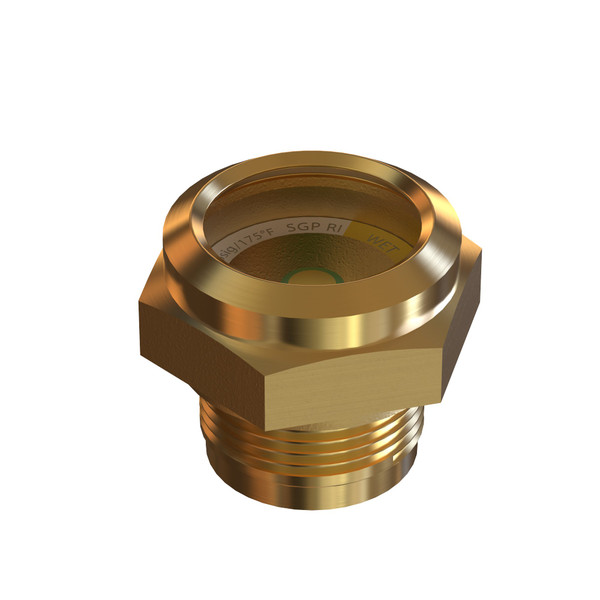

Product name: Sight glass socket, Type: SGP 24 RI
Product details
| Gross weight | 0.09 kg |
| Net weight | 0.08 kg |
| EAN | 5702428819206 |
| Gross weight | 0.09 kg |
| Net weight | 0.08 kg |
| EAN | 5702428819206 |
| Approval | C UL US LISTED EAC |
| Approval file name | REF. LIQUID INDICATOR 76H4 |
| Body material | Brass |
| Connection material | Brass |
| Connection size | M24 x 1 |
| Connection type | M |
| Green: max moist con@25 °C | R22: 150 ppm |
| Green: max moist con@43 °C | R22: 250 ppm |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Moisture indicator | I indicator |
| Packing format | Multi pack |
| Parts included | Gasket |
| Product accessories | SGS |
| Product family name | SGS |
| Product group | Sight glasses |
| Product name | Sight glass socket |
| Quantity per packing format | 10 pc |
| Refrigerants | R22 |
| Serviceable | No |
| SGS saddle application | M24 x 1 |
| Temperature range [°C] [Max] | 80 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 175 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | SGP 24 RI |
| UL approval file name | REF. LIQUID INDICATOR 76H4 |
| Yellow: min moist con@25 °C | R22: 300 ppm |
| Yellow: min moist con@43 °C | R22: 500 ppm |
| Approval | C UL US LISTED EAC |
| Approval file name | REF. LIQUID INDICATOR 76H4 |
| Body material | Brass |
| Connection material | Brass |
| Connection size | M24 x 1 |
| Connection type | M |
| Green: max moist con@25 °C | R22: 150 ppm |
| Green: max moist con@43 °C | R22: 250 ppm |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Moisture indicator | I indicator |
| Packing format | Multi pack |
| Parts included | Gasket |
| Product accessories | SGS |
| Product family name | SGS |
| Product group | Sight glasses |
| Product name | Sight glass socket |
| Quantity per packing format | 10 pc |
| Refrigerants | R22 |
| Serviceable | No |
| SGS saddle application | M24 x 1 |
| Temperature range [°C] [Max] | 80 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 175 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | SGP 24 RI |
| UL approval file name | REF. LIQUID INDICATOR 76H4 |
| Yellow: min moist con@25 °C | R22: 300 ppm |
| Yellow: min moist con@43 °C | R22: 500 ppm |
Product details
| Gross weight | 0.09 kg |
| Net weight | 0.08 kg |
| EAN | 5702428819206 |
| Gross weight | 0.09 kg |
| Net weight | 0.08 kg |
| EAN | 5702428819206 |
| Approval | C UL US LISTED EAC |
| Approval file name | REF. LIQUID INDICATOR 76H4 |
| Body material | Brass |
| Connection material | Brass |
| Connection size | M24 x 1 |
| Connection type | M |
| Green: max moist con@25 °C | R22: 150 ppm |
| Green: max moist con@43 °C | R22: 250 ppm |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Moisture indicator | I indicator |
| Packing format | Multi pack |
| Parts included | Gasket |
| Product accessories | SGS |
| Product family name | SGS |
| Product group | Sight glasses |
| Product name | Sight glass socket |
| Quantity per packing format | 10 pc |
| Refrigerants | R22 |
| Serviceable | No |
| SGS saddle application | M24 x 1 |
| Temperature range [°C] [Max] | 80 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 175 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | SGP 24 RI |
| UL approval file name | REF. LIQUID INDICATOR 76H4 |
| Yellow: min moist con@25 °C | R22: 300 ppm |
| Yellow: min moist con@43 °C | R22: 500 ppm |
| Approval | C UL US LISTED EAC |
| Approval file name | REF. LIQUID INDICATOR 76H4 |
| Body material | Brass |
| Connection material | Brass |
| Connection size | M24 x 1 |
| Connection type | M |
| Green: max moist con@25 °C | R22: 150 ppm |
| Green: max moist con@43 °C | R22: 250 ppm |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Moisture indicator | I indicator |
| Packing format | Multi pack |
| Parts included | Gasket |
| Product accessories | SGS |
| Product family name | SGS |
| Product group | Sight glasses |
| Product name | Sight glass socket |
| Quantity per packing format | 10 pc |
| Refrigerants | R22 |
| Serviceable | No |
| SGS saddle application | M24 x 1 |
| Temperature range [°C] [Max] | 80 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 175 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | SGP 24 RI |
| UL approval file name | REF. LIQUID INDICATOR 76H4 |
| Yellow: min moist con@25 °C | R22: 300 ppm |
| Yellow: min moist con@43 °C | R22: 500 ppm |
