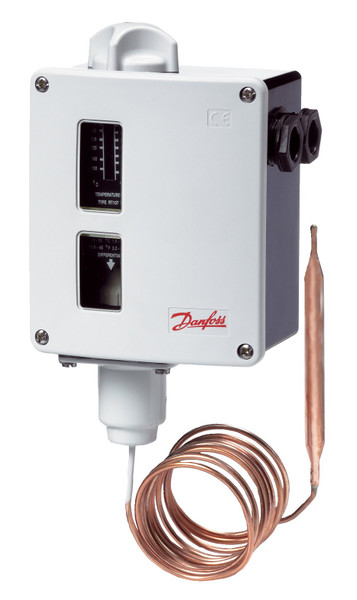

017-514566 Danfoss Thermostat, RT107

Write a Review
SKU:
017-514566
Availability:
2 - 3 weeks

Log in for pricing

Product details Gross weight 1.68 kg Net weight 1.57 kg EAN 5702423120369 Gross weight 1.68 kg Net weight 1.57 kg…

Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 1.68 kg
Net weight 1.57 kg
EAN 5702423120369
Gross weight 1.68 kg
Net weight 1.57 kg
EAN 5702423120369



Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Approval CCC
CE
DNV
EAC
GL
KR
LR
LVD
NKK
PZH
RMRS
RoHS
RoHS China
TYSK
CMIM
Cap. tube length fraction [in] 393 11/16 in
Capillary tube length [mm] 10000 mm
Charge type Partial
Contact function SPDT
Contact rating AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V
Diff. @ Max. range setting[°C] [Max] 8 °C
Diff. @ Max. range setting[°C] [Min] 1.8 °C
Diff. @ Min. range setting[°C] [Max] 25 °C
Diff. @ Min. range setting[°C] [Min] 6 °C
Differential type Adjustable
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Max. sensor temperature [°C] 215 °C
Max. sensor temperature [°F] 419 °F
Packing format Multi pack
Product accessories Switches accessories
Product description Thermostat
Product family name RT thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 9 pc
Reset function Auto
Sensor size (Ø x L) [in] 3/8 x 4 1/4 in
Sensor size (Ø x L) [mm] 9.5 x 110 mm
Sensor type Remote bulb
Serviceable Contact systems
Temperature range [°C] [Max] 150 °C
Temperature range [°C] [Min] 70 °C
Temperature range [°F] [Max] 302 °F
Temperature range [°F] [Min] 158 °F
Type RT107
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Approval CCC
CE
DNV
EAC
GL
KR
LR
LVD
NKK
PZH
RMRS
RoHS
RoHS China
TYSK
CMIM
Cap. tube length fraction [in] 393 11/16 in
Capillary tube length [mm] 10000 mm
Charge type Partial
Contact function SPDT
Contact rating AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V
Diff. @ Max. range setting[°C] [Max] 8 °C
Diff. @ Max. range setting[°C] [Min] 1.8 °C
Diff. @ Min. range setting[°C] [Max] 25 °C
Diff. @ Min. range setting[°C] [Min] 6 °C
Differential type Adjustable
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Max. sensor temperature [°C] 215 °C
Max. sensor temperature [°F] 419 °F
Packing format Multi pack
Product accessories Switches accessories
Product description Thermostat
Product family name RT thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 9 pc
Reset function Auto
Sensor size (Ø x L) [in] 3/8 x 4 1/4 in
Sensor size (Ø x L) [mm] 9.5 x 110 mm
Sensor type Remote bulb
Serviceable Contact systems
Temperature range [°C] [Max] 150 °C
Temperature range [°C] [Min] 70 °C
Temperature range [°F] [Max] 302 °F
Temperature range [°F] [Min] 158 °F
Type RT107
Product name: Thermostat, Type: RT107, Reset function: Auto, Contact function: SPDT, Temperature range [°C] [Min]: 70, Sensor type: Remote bulb, Temperature range [°C] [Max]: 150

Product details

Gross weight 1.68 kg
Net weight 1.57 kg
EAN 5702423120369
Gross weight 1.68 kg
Net weight 1.57 kg
EAN 5702423120369



Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Approval CCC
CE
DNV
EAC
GL
KR
LR
LVD
NKK
PZH
RMRS
RoHS
RoHS China
TYSK
CMIM
Cap. tube length fraction [in] 393 11/16 in
Capillary tube length [mm] 10000 mm
Charge type Partial
Contact function SPDT
Contact rating AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V
Diff. @ Max. range setting[°C] [Max] 8 °C
Diff. @ Max. range setting[°C] [Min] 1.8 °C
Diff. @ Min. range setting[°C] [Max] 25 °C
Diff. @ Min. range setting[°C] [Min] 6 °C
Differential type Adjustable
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Max. sensor temperature [°C] 215 °C
Max. sensor temperature [°F] 419 °F
Packing format Multi pack
Product accessories Switches accessories
Product description Thermostat
Product family name RT thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 9 pc
Reset function Auto
Sensor size (Ø x L) [in] 3/8 x 4 1/4 in
Sensor size (Ø x L) [mm] 9.5 x 110 mm
Sensor type Remote bulb
Serviceable Contact systems
Temperature range [°C] [Max] 150 °C
Temperature range [°C] [Min] 70 °C
Temperature range [°F] [Max] 302 °F
Temperature range [°F] [Min] 158 °F
Type RT107
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Approval CCC
CE
DNV
EAC
GL
KR
LR
LVD
NKK
PZH
RMRS
RoHS
RoHS China
TYSK
CMIM
Cap. tube length fraction [in] 393 11/16 in
Capillary tube length [mm] 10000 mm
Charge type Partial
Contact function SPDT
Contact rating AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V
Diff. @ Max. range setting[°C] [Max] 8 °C
Diff. @ Max. range setting[°C] [Min] 1.8 °C
Diff. @ Min. range setting[°C] [Max] 25 °C
Diff. @ Min. range setting[°C] [Min] 6 °C
Differential type Adjustable
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Max. sensor temperature [°C] 215 °C
Max. sensor temperature [°F] 419 °F
Packing format Multi pack
Product accessories Switches accessories
Product description Thermostat
Product family name RT thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 9 pc
Reset function Auto
Sensor size (Ø x L) [in] 3/8 x 4 1/4 in
Sensor size (Ø x L) [mm] 9.5 x 110 mm
Sensor type Remote bulb
Serviceable Contact systems
Temperature range [°C] [Max] 150 °C
Temperature range [°C] [Min] 70 °C
Temperature range [°F] [Max] 302 °F
Temperature range [°F] [Min] 158 °F
Type RT107
×
