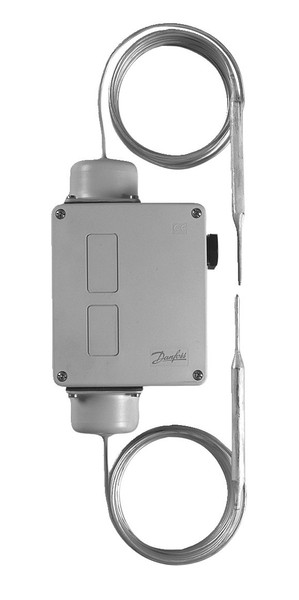

017D003166 Danfoss Thermostat, RT270

Write a Review
SKU:
017D003166
Availability:
2 - 3 weeks
$618.41

Product details Gross weight 1.7 kg Net weight 1.42 kg EAN 5702428042789 Gross weight 1.7 kg Net weight 1.42 kg …

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 1.7 kg
Net weight 1.42 kg
EAN 5702428042789
Gross weight 1.7 kg
Net weight 1.42 kg
EAN 5702428042789



Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Ammonia application No
Approval CCC
CE
EAC
LVD
PZH
RMRS
RoHS
RoHS China
TYSK
Cap. tube length fraction [in] 196 7/8 in
Capillary tube length [mm] 5000 mm
Contact differential [°C] 2 °C
Contact function SPDT
Contact rating AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V
Diff. temp. setting range [°C] [Max] 15 °C
Diff. temp. setting range [°C] [Min] 0 °C
Diff. temp. setting range [°F] [Max] 59 °F
Diff. temp. setting range [°F] [Min] 0 °F
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Max. sensor temperature [°C] 65 °C
Max. sensor temperature [°F] 149 °F
Packing format Multi pack
Pressure connection size 3/8
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Male
Product accessories Generic accessories
Switches accessories
Product description Thermostat
Product family name RT thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 9 pc
Reset function Auto
Sensor size (Ø x L) [in] 3/8 x 4 1/4 in
Sensor size (Ø x L) [mm] 9.5 x 110 mm
Sensor type Cylindrical Remote Sensor
Serviceable Contact systems
Temperature range [°C] [Max] 40 °C
Temperature range [°C] [Min] -30 °C
Temperature range [°F] [Max] 105 °F
Temperature range [°F] [Min] -20 °F
Type RT270
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Ammonia application No
Approval CCC
CE
EAC
LVD
PZH
RMRS
RoHS
RoHS China
TYSK
Cap. tube length fraction [in] 196 7/8 in
Capillary tube length [mm] 5000 mm
Contact differential [°C] 2 °C
Contact function SPDT
Contact rating AC15=3 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
AC3=4 A, 400 V
LR=28 A, 400 V
Diff. temp. setting range [°C] [Max] 15 °C
Diff. temp. setting range [°C] [Min] 0 °C
Diff. temp. setting range [°F] [Max] 59 °F
Diff. temp. setting range [°F] [Min] 0 °F
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Max. sensor temperature [°C] 65 °C
Max. sensor temperature [°F] 149 °F
Packing format Multi pack
Pressure connection size 3/8
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Male
Product accessories Generic accessories
Switches accessories
Product description Thermostat
Product family name RT thermostat
Product group Switches and thermostats
Product name Thermostat
Quantity per packing format 9 pc
Reset function Auto
Sensor size (Ø x L) [in] 3/8 x 4 1/4 in
Sensor size (Ø x L) [mm] 9.5 x 110 mm
Sensor type Cylindrical Remote Sensor
Serviceable Contact systems
Temperature range [°C] [Max] 40 °C
Temperature range [°C] [Min] -30 °C
Temperature range [°F] [Max] 105 °F
Temperature range [°F] [Min] -20 °F
Type RT270
Reset function: Auto, Contact function: SPDT, Temperature range [°C] [Min]: -30, Temperature range [°C] [Max]: 40, Sensor type: Cylindrical Remote Sensor
