Description

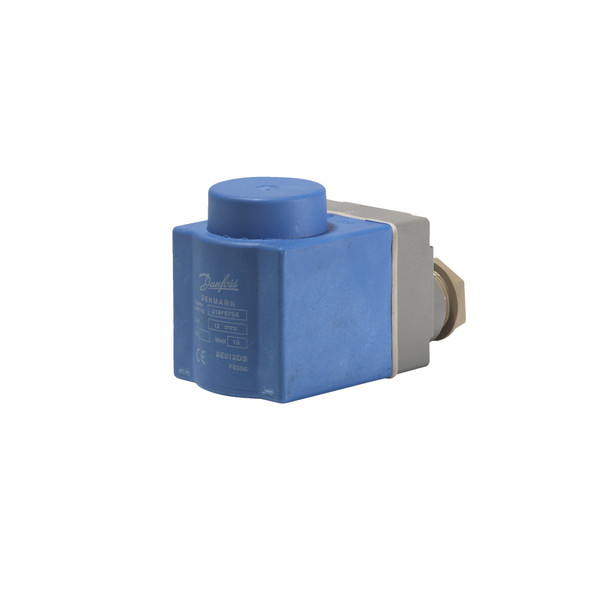

Product name: Solenoid coil, Type: BE012DS, Enclosure rating IP: IP67, Coil connection: Connection box
Product details
| Gross weight | 0.34 kg |
| Net weight | 0.32 kg |
| EAN | 5702428074421 |
| Gross weight | 0.34 kg |
| Net weight | 0.32 kg |
| EAN | 5702428074421 |
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [°C] | 50 °C |
| Ambient temperature range [°F] | 120 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] | 6 mm |
| Coil connection | Connection box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | BLUE |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Description | Coil BE012DS 12V DC Box |
| Duty rating | Continuous |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B EV258B |
| Power consumption [W] DC | 15 W |
| Product accessories | Solenoid coil accessories |
| Product group | Accessory |
| Product name | Magnetic coils |
| Quantity per packing format | 32 pc |
| Rel. Humidity [% RH] [Min] | 0 % |
| Serviceable | No |
| Spare part number | 018F6756 |
| Supply voltage [V] DC | 12 V |
| Type | Magnetic coil |
| Type designation | BE012DS |
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [°C] | 50 °C |
| Ambient temperature range [°F] | 120 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] | 6 mm |
| Coil connection | Connection box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | BLUE |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Description | Coil BE012DS 12V DC Box |
| Duty rating | Continuous |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B EV258B |
| Power consumption [W] DC | 15 W |
| Product accessories | Solenoid coil accessories |
| Product group | Accessory |
| Product name | Magnetic coils |
| Quantity per packing format | 32 pc |
| Rel. Humidity [% RH] [Min] | 0 % |
| Serviceable | No |
| Spare part number | 018F6756 |
| Supply voltage [V] DC | 12 V |
| Type | Magnetic coil |
| Type designation | BE012DS |
Product details
| Gross weight | 0.34 kg |
| Net weight | 0.32 kg |
| EAN | 5702428074421 |
| Gross weight | 0.34 kg |
| Net weight | 0.32 kg |
| EAN | 5702428074421 |
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [°C] | 50 °C |
| Ambient temperature range [°F] | 120 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] | 6 mm |
| Coil connection | Connection box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | BLUE |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Description | Coil BE012DS 12V DC Box |
| Duty rating | Continuous |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B EV258B |
| Power consumption [W] DC | 15 W |
| Product accessories | Solenoid coil accessories |
| Product group | Accessory |
| Product name | Magnetic coils |
| Quantity per packing format | 32 pc |
| Rel. Humidity [% RH] [Min] | 0 % |
| Serviceable | No |
| Spare part number | 018F6756 |
| Supply voltage [V] DC | 12 V |
| Type | Magnetic coil |
| Type designation | BE012DS |
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [°C] | 50 °C |
| Ambient temperature range [°F] | 120 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] | 6 mm |
| Coil connection | Connection box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | BLUE |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Description | Coil BE012DS 12V DC Box |
| Duty rating | Continuous |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B EV258B |
| Power consumption [W] DC | 15 W |
| Product accessories | Solenoid coil accessories |
| Product group | Accessory |
| Product name | Magnetic coils |
| Quantity per packing format | 32 pc |
| Rel. Humidity [% RH] [Min] | 0 % |
| Serviceable | No |
| Spare part number | 018F6756 |
| Supply voltage [V] DC | 12 V |
| Type | Magnetic coil |
| Type designation | BE012DS |
