Description

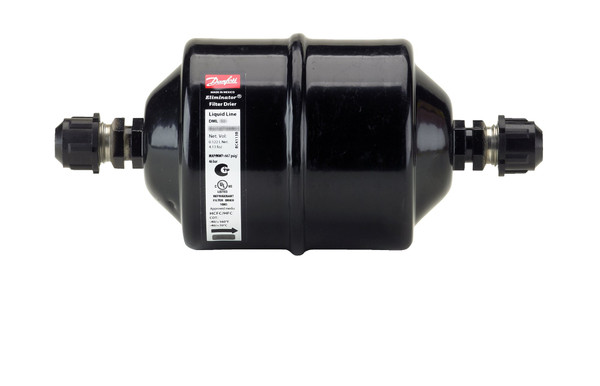

Product name: Hermetic filter drier, Inlet connection type: FLARE, Outlet connection type: FLARE
Product details
| Gross weight | 0.91 kg |
| Net weight | 0.84 kg |
| EAN | 5702428155663 |
| Gross weight | 0.91 kg |
| Net weight | 0.84 kg |
| EAN | 5702428155663 |
| Acid capacity [g] | 1.2 g |
| Acid capacity [oz] | 0.042 oz |
| Activated alum/Molec sieve [%] | 0% / 100% |
| Approval | UL |
| Body material | Steel |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel |
| Core | Solid core |
| Core Size code | 16 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 559 R290: -- R32: 470 R404A: 582 R407C: 543 R410A: 506 R507: 610 |
| Drying Cap[Drops of Water]52°C | R290: -- R134a: 512 R32: 433 R404A: 551 R407C: 500 R410A: 450 R507: 548 |
| Flow capacity [kW] | R290: -- R134a: 42.5 R32: 64.8 R404A: 29.9 R407C: 43.6 R410A: 44.3 R507: 29.0 |
| Flow capacity [TR] | R290: -- R404A: 8.5 R134a: 12.1 R32: 18.4 R407C: 12.4 R410A: 12.6 R507: 8.3 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Inlet 1 connection size [in] | 3/4 in |
| Inlet connection size [mm] | 19 mm |
| Inlet connection type | FLARE |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 7.63 oz |
| Net volume [l] | 0.226 L |
| Outlet 1 connection size [in] | 3/4 in |
| Outlet connection size [mm] | 19 mm |
| Outlet connection type | FLARE |
| Packing format | Multi pack |
| Product description | Liquid line filter drier |
| Product family name | DML |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 12 pc |
| Refrigerants | R1234yf R1234ze R125 R134a R22/R407C R23 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A |
| Serviceable | No |
| Shell volume [foz US] | 11.97 oz |
| Shell volume [l] | 0.35 L |
| Solid core surface [cm2] | 183 cm2 |
| Solid core surface [in2] | 28.34 in2 |
| Solid core volume [cm3] | 128 cm3 |
| Solid core volume [in3] | 7.84 in3 |
| Specification key | DML 166 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DML |
| Type designation | DML 166 |
| UL approval file name | SA6398 |
