Description
Product description: Function Module
Product details
| Gross weight | 3.71 kg |
| Net weight | 3.66 kg |
| EAN | 5702428236775 |
| Gross weight | 3.71 kg |
| Net weight | 3.66 kg |
| EAN | 5702428236775 |
| Body material | Steel |
| Brand | ICV Flexline |
| Category | Art. 3, par. 3 |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Cv value [gal/min] | 9.3 gal/min |
| Direction | Straightway |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Further information | Coils not included |
| Inlet connection size [in] | 1 in |
| Inlet connection size [mm] | 25 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 8 m3/h |
| Manual operation option | Manual open spindle |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Opening configuration | Closed (delta p=0 bar) Full open (delta p≥0.2 bar) |
| Outlet connection size [in] | 1 in |
| Outlet connection size [mm] | 25 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | ICS |
| Pressure gauge connection | Int. thread with blind plug |
| Product accessories | ICM / ICS / ICLX accessories |

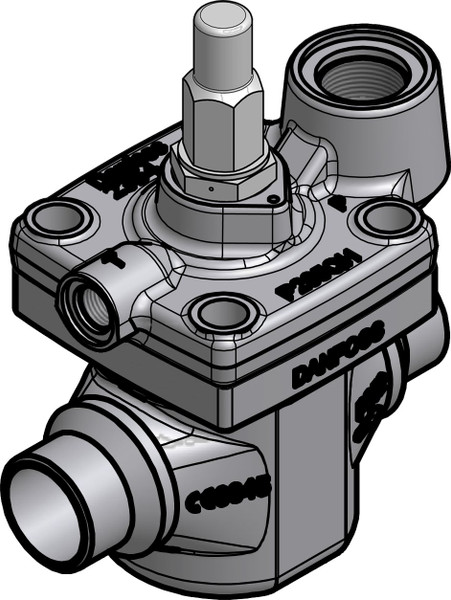

| Product description | Servo operated valve |
| Product group | Press. and temp. regul. valves |
| Product name | Pilot operated servo valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R1234ze R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Serviceable | ICM / ICS / ICLX spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Top cover | 1 function module |
| Type | ICS1 25-20 |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Valve operation | Pilot operated |
| Valve version | Standard version |
| Body material | Steel |
| Brand | ICV Flexline |
| Category | Art. 3, par. 3 |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Cv value [gal/min] | 9.3 gal/min |
| Direction | Straightway |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Further information | Coils not included |
| Inlet connection size [in] | 1 in |
| Inlet connection size [mm] | 25 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 8 m3/h |
| Manual operation option | Manual open spindle |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Opening configuration | Closed (delta p=0 bar) Full open (delta p≥0.2 bar) |
| Outlet connection size [in] | 1 in |
| Outlet connection size [mm] | 25 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | ICS |
| Pressure gauge connection | Int. thread with blind plug |
| Product accessories | ICM / ICS / ICLX accessories |
| Product description | Servo operated valve |
| Product group | Press. and temp. regul. valves |
| Product name | Pilot operated servo valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R1234ze R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Serviceable | ICM / ICS / ICLX spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Top cover | 1 function module |
| Type | ICS1 25-20 |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Valve operation | Pilot operated |
| Valve version | Standard version |
