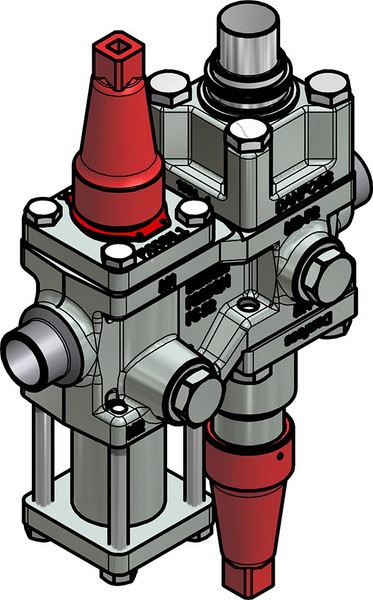

027L4560 Danfoss Valve station, ICF 15-4-14MB

Write a Review
SKU:
027L4560
Availability:
2 - 3 weeks

Log in for pricing

Product details Gross weight 7.32 kg Net weight 0.01 kg EAN 5702428934329 Gross weight 7.32 kg Net weight 0.01 kg…

Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 7.32 kg
Net weight 0.01 kg
EAN 5702428934329
Gross weight 7.32 kg
Net weight 0.01 kg
EAN 5702428934329



Body material Steel
Category Art. 3, par. 3
Connection material Steel
Connection size [in] 3/4 in
Connection size [mm] 20 mm
Connection standard EN 10220
Connection type Butt weld
Direction Straightway
Equipment Cap
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Max. Working Pressure [bar] 52 bar
Max. Working Pressure [psig] 450 psig
Module 1 Stop valve
Module 1 type ICFS 15
Module 2 Filter
Module 2 type ICFF 15
Module 3 Motor valve
Module 3 type ICM 20-B
Module 4 Stop valve
Module 4 type ICFS 20
Packing format Single pack
Product description Control Solution
Product group Multifunction valves
Product name Valve station
Quantity per packing format 1 pc
Refrigerants R134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R507
R717
R744
Side port connection size [in] 3/8 in
Side port connection type G
Side port placement P1-P2
Side port quantity [pc] 2 pc
Surface coating Zn (TLP)
Temperature range [°C] [Max] 120 °C
Temperature range [°C] [Min] -60 °C
Temperature range [°F] [Max] 248 °F
Temperature range [°F] [Min] -76 °F
Type ICF 15-4-14MB
Type code ICF ICF-15-4-20DSYFYMBSXXXXX2EXX
