Description

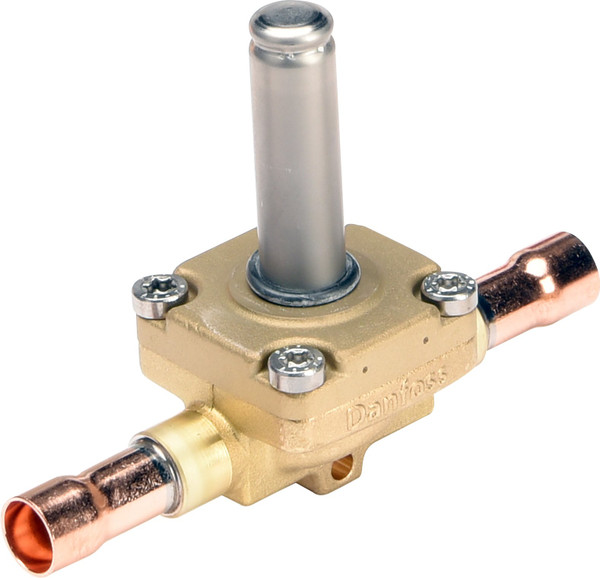

Product name: Solenoid valve, Type: EVR 10, Function: NC, Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Manual operation option: Yes
Product details
| Gross weight | 0.54 kg |
| Net weight | 0.38 kg |
| EAN | 5702428942980 |
| Gross weight | 0.54 kg |
| Net weight | 0.38 kg |
| EAN | 5702428942980 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Approval | UL EAC |
| Coil | No |
| Cv value [gal/min] | 2.4 gal/min |
| Direction | Straightway |
| Function | NC |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 1/2 IN |
| Kv value [m³/h] | 2.2 m3/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 20 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 290 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | COIL DEPENDEND |
| Orifice size [mm] | 10 mm |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 1/2 IN |
| Packing format | Multi pack |
| Parts Program name | EVR |
| Product family name | EVR v2 |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 12 pc |
| Refrigerants | R1234yf R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R507 R600 R600a R513A R1234ze(E) R407H R413A R422A R422B R422D R438A R444B R447A R449B R452B R134a/R513A R454B R454C R455A R463A R513B R515A R515B R516A L40 R442A R447B R512A |
| Type | EVR 10 |
| Type designation | Solenoid valve, Solder |
| Valve operation | SERVO-DIAPHRAGM |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Approval | UL EAC |
| Coil | No |
| Cv value [gal/min] | 2.4 gal/min |
| Direction | Straightway |
| Function | NC |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 1/2 IN |
| Kv value [m³/h] | 2.2 m3/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 20 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 290 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | COIL DEPENDEND |
| Orifice size [mm] | 10 mm |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 1/2 IN |
| Packing format | Multi pack |
| Parts Program name | EVR |
| Product family name | EVR v2 |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 12 pc |
| Refrigerants | R1234yf R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R507 R600 R600a R513A R1234ze(E) R407H R413A R422A R422B R422D R438A R444B R447A R449B R452B R134a/R513A R454B R454C R455A R463A R513B R515A R515B R516A L40 R442A R447B R512A |
| Type | EVR 10 |
| Type designation | Solenoid valve, Solder |
| Valve operation | SERVO-DIAPHRAGM |
