Description

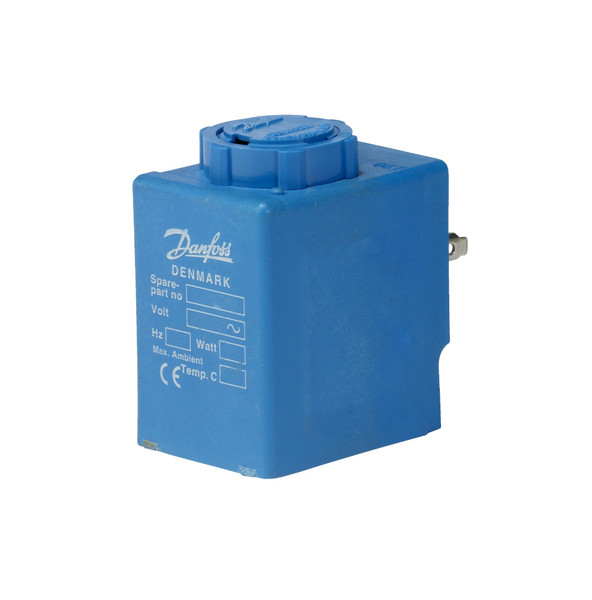

Product name: Solenoid coil, Type: BA024D, Enclosure rating IP: IP00, Coil connection: DIN Spade, Actuator size: 13.5 mm
Product details
| Gross weight | 0.19 kg |
| Net weight | 0.18 kg |
| EAN | 5702423002863 |
| Gross weight | 0.19 kg |
| Net weight | 0.18 kg |
| EAN | 5702423002863 |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [Max] | 40 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 104 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Coil connection | DIN Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Nut and snap |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Duty rating | Continuous |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| Packing format | Multi pack |
| Parts included | Nut Snap fastener |
| Parts Program name | EV210B EV220B 15 - 50 EV310B |
| Power consumption [W] DC | 14 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product name | Solenoid coil |
| Quantity per packing format | 45 pc |
| Rel. Humidity [% RH] [Max] | 97 % |
| Rel. Humidity [% RH] [Min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type | BA024D |
| Type designation | BA024D |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [Max] | 40 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 104 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Coil connection | DIN Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Nut and snap |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Duty rating | Continuous |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| Packing format | Multi pack |
| Parts included | Nut Snap fastener |
| Parts Program name | EV210B EV220B 15 - 50 EV310B |
| Power consumption [W] DC | 14 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product name | Solenoid coil |
| Quantity per packing format | 45 pc |
| Rel. Humidity [% RH] [Max] | 97 % |
| Rel. Humidity [% RH] [Min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type | BA024D |
| Type designation | BA024D |
Product details
| Gross weight | 0.19 kg |
| Net weight | 0.18 kg |
| EAN | 5702423002863 |
| Gross weight | 0.19 kg |
| Net weight | 0.18 kg |
| EAN | 5702423002863 |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [Max] | 40 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 104 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Coil connection | DIN Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Nut and snap |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Duty rating | Continuous |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| Packing format | Multi pack |
| Parts included | Nut Snap fastener |
| Parts Program name | EV210B EV220B 15 - 50 EV310B |
| Power consumption [W] DC | 14 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product name | Solenoid coil |
| Quantity per packing format | 45 pc |
| Rel. Humidity [% RH] [Max] | 97 % |
| Rel. Humidity [% RH] [Min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type | BA024D |
| Type designation | BA024D |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [Max] | 40 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 104 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Coil connection | DIN Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Nut and snap |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Duty rating | Continuous |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| Packing format | Multi pack |
| Parts included | Nut Snap fastener |
| Parts Program name | EV210B EV220B 15 - 50 EV310B |
| Power consumption [W] DC | 14 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product name | Solenoid coil |
| Quantity per packing format | 45 pc |
| Rel. Humidity [% RH] [Max] | 97 % |
| Rel. Humidity [% RH] [Min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type | BA024D |
| Type designation | BA024D |
