Description

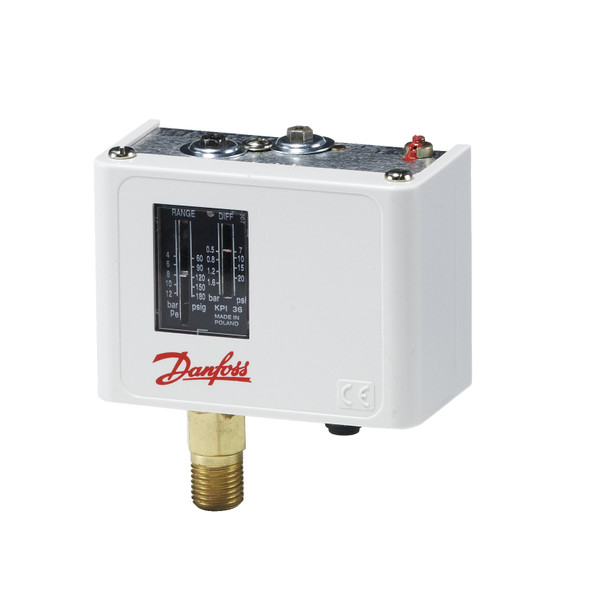

Product name: Pressure switch, Type: KPI36, Reset function: Auto, Regulation range [bar] Pe: 4.00 - 12.00, Regulation range [psig] Pe: 58.00 - 174.00, Pressure connection size: 1/4, Pressure connection type: G, Pressure Male/Female: Male
Product details
| Gross weight | 0.34 kg |
| Net weight | 0.31 kg |
| EAN | 5702423146673 |
| Gross weight | 0.34 kg |
| Net weight | 0.31 kg |
| EAN | 5702423146673 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCC CE EAC LVD PZH RINA RoHS China c UL us UL873, CS C22.2 CMIM |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 440 V DC13=12 W, 220 V AC1=10 A, 440 V AC3=6 A, 440 V LR=36A, 240V LR=48A, 120V for gold 1…30 mA, 5...30 V |
| Differential [bar] [Max] | 1.6 bar |
| Differential [bar] [Min] | 0.5 bar |
| Differential [psi] [Max] | 23 psi |
| Differential [psi] [Min] | 7 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Identical product | 060-114066 |
| Max. test pressure [bar] Pe | 18 bar |
| Max. test pressure [psig] | 261 psig |
| Max. Working Pressure [bar] | 18 bar |
| Max. Working Pressure [psig] | 261 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range category | Medium pressure |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 36 pc |
| Regulation range [bar] Pe [Max] | 12 bar |
| Regulation range [bar] Pe [Min] | 4 bar |
| Regulation range [psig] Pe [Max] | 174 psig |
| Regulation range [psig] Pe [Min] | 58 psig |
| Reset function | Auto |
| Serviceable | No |
| Type | KPI36 |
| UL approval file name | E31024 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCC CE EAC LVD PZH RINA RoHS China c UL us UL873, CS C22.2 CMIM |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 440 V DC13=12 W, 220 V AC1=10 A, 440 V AC3=6 A, 440 V LR=36A, 240V LR=48A, 120V for gold 1…30 mA, 5...30 V |
| Differential [bar] [Max] | 1.6 bar |
| Differential [bar] [Min] | 0.5 bar |
| Differential [psi] [Max] | 23 psi |
| Differential [psi] [Min] | 7 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Identical product | 060-114066 |
| Max. test pressure [bar] Pe | 18 bar |
| Max. test pressure [psig] | 261 psig |
| Max. Working Pressure [bar] | 18 bar |
| Max. Working Pressure [psig] | 261 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range category | Medium pressure |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 36 pc |
| Regulation range [bar] Pe [Max] | 12 bar |
| Regulation range [bar] Pe [Min] | 4 bar |
| Regulation range [psig] Pe [Max] | 174 psig |
| Regulation range [psig] Pe [Min] | 58 psig |
| Reset function | Auto |
| Serviceable | No |
| Type | KPI36 |
| UL approval file name | E31024 |
