Description

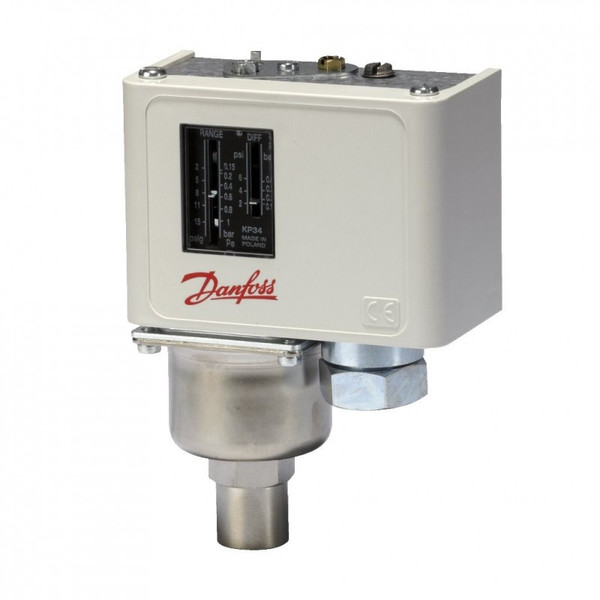

Type Code KP34 , Weight 0.438 Kg , Ambient temp. -40 - 65 °C , Ambient temp. -40 - 149 °F , Approval c UL us UL353 More details
Danfoss KP pressure switches are used for regulating, monitoring and alarm systems in industrial applications. The KP series are suitable for gaseous media and air. They are fitted with a single-pole switch changeover (SPDT), and can control single-phase ac motors of up to 2 kW directly. Pressure ranges: -0.2 to21 bar High contact load - Ultra short bounce-time Also available with gold plated contact systems Media: Gaseous media and air Enclosure IP44 when mounted with top cover and back plate Also available with enclosure IP55 for OEM customers Small dimensions - space saving - easy to install Shock and impact resistant
| Type Code | KP34 |
| Weight | 0.438 Kg |
| Ambient temp. | -40 - 65 °C |
| Ambient temp. | -40 - 149 °F |
| Approval | c UL us UL353, CS C22.2, c UL us UL873, CS C22.2, CCC, CE, EAC, FM, RINA, RMRS |
| Contact function | SPDT |
| Contact rating | 120Vac,16FLA,96LRA,3APilotDuty |
| Contact rating | 16 A resistive, single phase |
| Contact rating | 240 V ac, 8 FLA, 48 LRA |
| Contact rating | 240V dc,12W pilot duty(0.05 A) |
| Contact rating | 8 A resistive, single phase |
| Diff. | 0,14 - 0,42 bar |
| Diff. | 2,00 - 6,00 psi |
| EAN no. | 5702423228805 |
| Electr. conn. comments | Coupling nut |
| Electr. conn. Male/Female | Female |
| Electr. conn. | NPSM |
| Electr. conn. size | 1/2-14 in |
| Encl. | IP30 |
| Max. test pressure | 6,0 bar |
| Max. Working Pressure | 4,0 bar |
| Max. Working Pressure | 58 psig |
| Nema rating | 1 |
| Pressure conn. std. | ANSI/ASME B1.20.1 |
| Pressure conne. type | NPT - 1/4-18 Female |
| Pressure range cat. | Low pressure |
| Pressure sensing elem. | Bellows |
| Prod. description | Pressure Control |
| Prod. group | Switches and thermostats |
| Prod. name | Pressure switch |
| Regul. range | 0,14 - 1,07 bar |
| Regul. range | 2,00 - 15,00 psig |
| Reset | AUTO |
| UL approval file name | E31024 |
| UL approval file name | MH27572 |
