Description

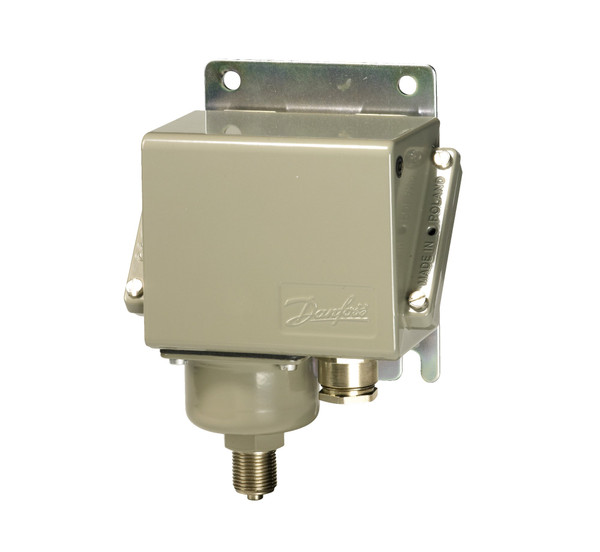

Product name: Pressure switch, Type: KPS33, Reset function: Auto, Pressure connection size: 3/8, Pressure connection type: G, Pressure Male/Female: Male
Product details
| Gross weight | 1.13 kg |
| Net weight | 1.05 kg |
| EAN | 5702423146918 |
| Gross weight | 1.13 kg |
| Net weight | 1.05 kg |
| EAN | 5702423146918 |
| Alarm Signal | Rising |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL KRS LR LVD NKK RINA RMRS RoHS RoHS China TYSK UL |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 440 V DC13=12 W, 220 V AC1=10 A, 440 V AC3=6 A, 440 V LR max. 50 A for gold 1…30 mA, 5...30 V |
| Differential [bar] | 0.2 bar |
| Differential [psi] | 3 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP67 |
| Factory setting [bar] | 0.7 bar |
| Factory setting [MPa] | 0.07 MPa |
| Factory setting [psig] | 10.2 psig |
| Max. test pressure [bar] Pe | 10 bar |
| Max. test pressure [psig] | 145 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Packing format | Multi pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range category | Low pressure |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 8 pc |
| Reset function | Auto |
| Serviceable | No |
| Type | KPS33 |
| UL approval file name | E73170 |
| Alarm Signal | Rising |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL KRS LR LVD NKK RINA RMRS RoHS RoHS China TYSK UL |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 440 V DC13=12 W, 220 V AC1=10 A, 440 V AC3=6 A, 440 V LR max. 50 A for gold 1…30 mA, 5...30 V |
| Differential [bar] | 0.2 bar |
| Differential [psi] | 3 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP67 |
| Factory setting [bar] | 0.7 bar |
| Factory setting [MPa] | 0.07 MPa |
| Factory setting [psig] | 10.2 psig |
| Max. test pressure [bar] Pe | 10 bar |
| Max. test pressure [psig] | 145 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Packing format | Multi pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range category | Low pressure |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 8 pc |
| Reset function | Auto |
| Serviceable | No |
| Type | KPS33 |
| UL approval file name | E73170 |
