Description
Type Code MBC 8100 , Weight 0.267 Kg , Ambient temp. -40 - 70 °C , Ambient temp. -40 - 158 °F , Approval ABS More details

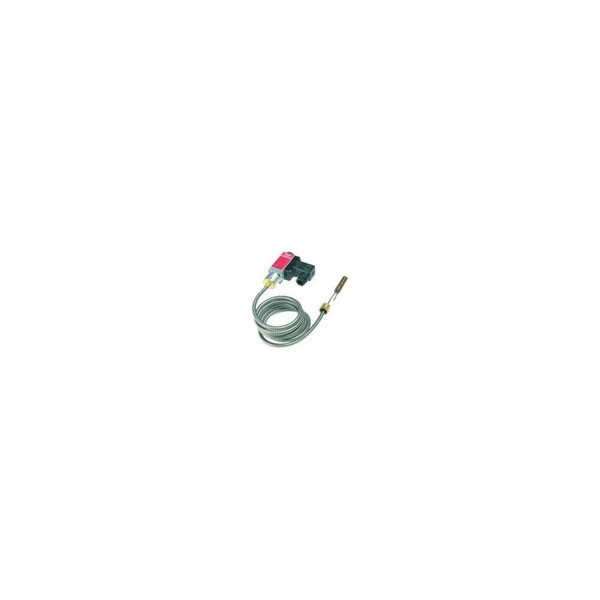

MBC 8100 thermostats are used in marine applications where space and reliability are the most important features. MBCs are compact thermostats, designed according to our new block design to survive in the harsh conditions known from machine rooms onboard ships. MBCs have high vibration resistance and feature all commonly marine approvals. The fixed, but low differential guarantees accurate monitoring of critical temperatures. Also available without marine approvals (MBC 8000, please contact Danfoss for information) Block design Fully electromechanical -10 to +200 °C temperature range Available with all relevant marine approvals Designed to meet the strict demands in the marine equipment
| Type Code | MBC 8100 |
| Weight | 0.267 Kg |
| Ambient temp. | -40 - 70 °C |
| Ambient temp. | -40 - 158 °F |
| Approval | ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LR, NKK, RINA, RMRS |
| Cap. tube length | 78 3/4 in |
| Cap. tube length | 2.000 mm |
| Charge type | Adsorption |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V |
| Contact rating | DC13=12 W, 125 V |
| Diff. (FS) | 6,0 K |
| Diff. type | Fixed (max. value) |
| EAN no. | 5702428366847 |
| Electr. conn. Male/Female | Female |
| Electr. conn. size | Pg 11 |
| Electr. conn. std. | EN 175301-803-A |
| Electr. spec. standard | EN 60947-5 |
| Encl. | IP65 |
| Glow lamp | No |
| Max. sensor temp. | 250 °C |
| Max. sensor temp. | 482,0 °F |
| Prod. description | Temperature Control |
| Prod. group | Switches and thermostats |
| Prod. name | Thermostat |
| Sens. pocket length min. | 65 mm |
| Sensor size (ø x L) | 1/2 x 2 in |
| Sensor size (ø x L) | 13 x 50 mm |
| Sensor type | Remote Sensor |
| Spec. key | 2621-1A02000 |
| Temp. range | 60 - 150 °C |
| Temp. range | 140 - 302 °F |
