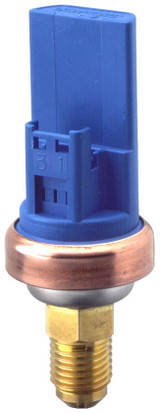

061H5082 Danfoss Pressure transmitter, XSK

Description

Product details

Gross weight	0.06 kg
Net weight	0.06 kg

EAN

5702428275095

+ supply	Pin 1
- common	Pin 3
Accuracy, max. +/- FS [%]	3 %
Ambient temperature range [Â°C] [Max]	70 Â°C
Ambient temperature range [Â°C] [Min]	-20 Â°C
Electrical conn. Male/Female	Female
Electrical connection	Molex
Enclosure rating IP	IP66
Identical product	061H5102
Medium temperature range [Â°C] [Max]	70 Â°C
Medium temperature range [Â°C] [Min]	-20 Â°C
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Overload pressure max. [bar]	38.5 bar
Packing format	Industrial pack
Pressure connection HEX [mm]	14 mm
Pressure connection notes	With Schrader Depressor

Pressure connection size	7/16-20
Pressure connection standard	ASME B1.1
Pressure connection type	UNF
Pressure Male/Female	Female
Pressure range [bar] [Max]	30 bar
Pressure range [bar] [Min]	0 bar
Pressure unit reference	Gauge (relative)
Product family name	XSK
Product group	Sensors
Product name	Pressure transmitter
Quantity per packing format	100 pc
Refrigerants	R134a R404A R407C R410A
Specification key	XSK-AC30I-U188
Supply voltage [V] DC [Max]	28 V
Supply voltage [V] DC [Min]	10.5 V
Type	XSK

+ supply	Pin 1
- common	Pin 3
Accuracy, max. +/- FS [%]	3 %
Ambient temperature range [Â°C] [Max]	70 Â°C
Ambient temperature range [Â°C] [Min]	-20 Â°C
Electrical conn. Male/Female	Female
Electrical connection	Molex
Enclosure rating IP	IP66
Identical product	061H5102
Medium temperature range [Â°C] [Max]	70 Â°C
Medium temperature range [Â°C] [Min]	-20 Â°C
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Overload pressure max. [bar]	38.5 bar
Packing format	Industrial pack
Pressure connection HEX [mm]	14 mm
Pressure connection notes	With Schrader Depressor
Pressure connection size	7/16-20
Pressure connection standard	ASME B1.1
Pressure connection type	UNF
Pressure Male/Female	Female
Pressure range [bar] [Max]	30 bar
Pressure range [bar] [Min]	0 bar
Pressure unit reference	Gauge (relative)
Product family name	XSK
Product group	Sensors
Product name	Pressure transmitter
Quantity per packing format	100 pc
Refrigerants	R134a R404A R407C R410A
Specification key	XSK-AC30I-U188
Supply voltage [V] DC [Max]	28 V
Supply voltage [V] DC [Min]	10.5 V
Type	XSK

Pressure connection type: UNF, Pressure connection size: 7/16-20, Electrical connection: Molex
