Description
Ambient temperature range [°C] [Min]: -20, Ambient temperature range [°C] [Max]: 55
Product details
| Gross weight | 2.55 kg |
| Net weight | 1.55 kg |
| EAN | 5702428273534 |
| Gross weight | 2.55 kg |
| Net weight | 1.55 kg |
| EAN | 5702428273534 |
| Ambient temperature range [°C] [Max] | 55 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 131 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | CE VDE |
| Cap condition 1 [°C] | 0°C sub-cooling 38°C condensing 5°C evaporating 5°C super-heat |
| Cap condition 2 [°C] | 54,4 °C condensing 5°C sub-cooling 5°C super-heat 7,2°C evaporating |
| Cap R407C@Δp:0.1bar(cond1)[kW] | 30.12 kW |
| Cap R407C@Δp:0.1bar(cond2)[kW] | 27.82 kW |
| Cap R407C@Δp:0.2bar(cond1)[kW] | 42.39 kW |
| Cap R407C@Δp:0.2bar(cond2)[kW] | 39.17 kW |
| Cap R410A@Δp:0.1bar(cond1)[kW] | 36.9 kW |
| Cap R410A@Δp:0.1bar(cond2)[kW] | 33.25 kW |
| Cap R410A@Δp:0.2bar(cond1)[kW] | 52.05 kW |
| Cap R410A@Δp:0.2bar(cond2)[kW] | 46.9 kW |
| Coil | No |
| Design config. Style | F |
| Discharge conn size [in] | 7/8 |
| Discharge conn size [mm] | 22.5 mm |
| Discharge conn type | FEMALE |
| Evap/cond conn size [in] | 1 3/8 |
| Evap/cond conn size [mm] | 28,9 |
| Max. Leakage [cm³/min] | 6000 cm3/min |
| MaxOPD [bar] | 31 bar |
| MaxOPD [psig] | 450 psig |
| Medium temperature range [°C] [Max] | 120 °C |
| Medium temperature range [°C] [Min] | -20 °C |
| Medium temperature range [°F] [Max] | 248 °F |
| Medium temperature range [°F] [Min] | -4 °F |
| MinODP [bar] | 3 bar |
| MinODP [psi] | 44 psi |
| Packing format | Single pack |
| Process connection material | Copper |
| Product group | 4-way reversing valves |

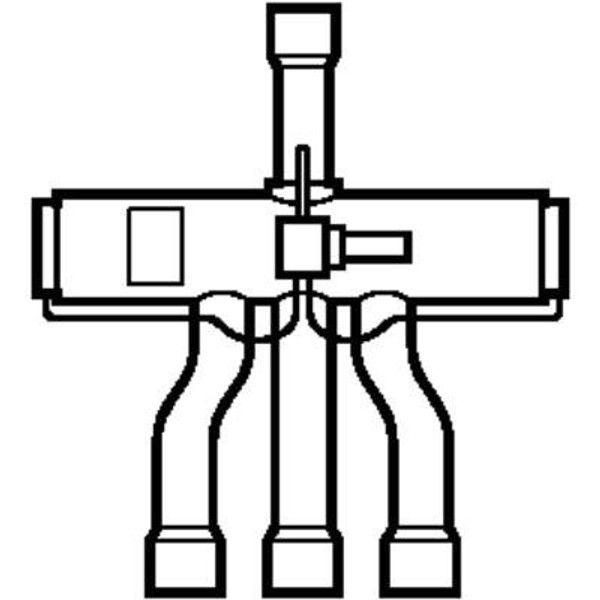

| Product name | 4-way reversing valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R404A R407C R410A |
| Shock resistance standard | JIS C 60068-2-27 |
| Suction conn size [in] | 1 3/8 |
| Suction conn size [mm] | 28.9 mm |
| Type | STF |
| Type designation | STF-1513G3 |
| Valve body temp. max. [°C] | 120 °C |
| Vibration stability [m/s²] | 19.6 m/s2 |
| Vibration test standard | JIS C 60068-2-6 |
| Ambient temperature range [°C] [Max] | 55 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 131 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | CE VDE |
| Cap condition 1 [°C] | 0°C sub-cooling 38°C condensing 5°C evaporating 5°C super-heat |
| Cap condition 2 [°C] | 54,4 °C condensing 5°C sub-cooling 5°C super-heat 7,2°C evaporating |
| Cap R407C@Δp:0.1bar(cond1)[kW] | 30.12 kW |
| Cap R407C@Δp:0.1bar(cond2)[kW] | 27.82 kW |
| Cap R407C@Δp:0.2bar(cond1)[kW] | 42.39 kW |
| Cap R407C@Δp:0.2bar(cond2)[kW] | 39.17 kW |
| Cap R410A@Δp:0.1bar(cond1)[kW] | 36.9 kW |
| Cap R410A@Δp:0.1bar(cond2)[kW] | 33.25 kW |
| Cap R410A@Δp:0.2bar(cond1)[kW] | 52.05 kW |
| Cap R410A@Δp:0.2bar(cond2)[kW] | 46.9 kW |
| Coil | No |
| Design config. Style | F |
| Discharge conn size [in] | 7/8 |
| Discharge conn size [mm] | 22.5 mm |
| Discharge conn type | FEMALE |
| Evap/cond conn size [in] | 1 3/8 |
| Evap/cond conn size [mm] | 28,9 |
| Max. Leakage [cm³/min] | 6000 cm3/min |
| MaxOPD [bar] | 31 bar |
| MaxOPD [psig] | 450 psig |
| Medium temperature range [°C] [Max] | 120 °C |
| Medium temperature range [°C] [Min] | -20 °C |
| Medium temperature range [°F] [Max] | 248 °F |
| Medium temperature range [°F] [Min] | -4 °F |
| MinODP [bar] | 3 bar |
| MinODP [psi] | 44 psi |
| Packing format | Single pack |
| Process connection material | Copper |
| Product group | 4-way reversing valves |
| Product name | 4-way reversing valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R404A R407C R410A |
| Shock resistance standard | JIS C 60068-2-27 |
| Suction conn size [in] | 1 3/8 |
| Suction conn size [mm] | 28.9 mm |
| Type | STF |
| Type designation | STF-1513G3 |
| Valve body temp. max. [°C] | 120 °C |
| Vibration stability [m/s²] | 19.6 m/s2 |
| Vibration test standard | JIS C 60068-2-6 |
