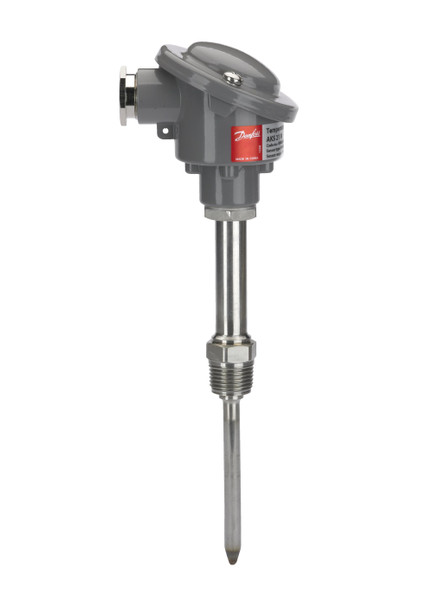

Description
Sensor element type: Pt, Sensor elem. resistance [Ohm]: 1000, Electrical connection size: Pg 16, Electrical connection: Type B
Product details
| Gross weight | 0.33 kg |
| Net weight | 0.32 kg |
| EAN | 5702422022565 |
| Gross weight | 0.33 kg |
| Net weight | 0.32 kg |
| EAN | 5702422022565 |
| Ambient temperature max. [°C] | 160 °C |
| Ambient temperature max. [°F] | 320 °F |
| Connection standard | ISO 7 |
| Connection type | R |
| Electrical connection | Type B |
| Electrical connection size | Pg 16 |
| Measuring range [°C] [Max] | 160 °C |
| Measuring range [°C] [Min] | -70 °C |
| Measuring range [°F] [Max] | 320 °F |
| Measuring range [°F] [Min] | -94 °F |
| Number of terminals [pcs] | 3 pc |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection size | 1/2 |
| Process connection standard | ISO 7 |
| Process connection type | R |
| Product family name | AKS |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.32 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube length [in] | 6.3 in |
| Protection tube length [mm] | 160 mm |
| Protection tube material | Stainless steel |
| Quantity per packing format | 9 pc |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Type | AKS 21 W |
| Wires [pcs] | 2 pc |
| Ambient temperature max. [°C] | 160 °C |
| Ambient temperature max. [°F] | 320 °F |
| Connection standard | ISO 7 |
| Connection type | R |
| Electrical connection | Type B |
| Electrical connection size | Pg 16 |
| Measuring range [°C] [Max] | 160 °C |
| Measuring range [°C] [Min] | -70 °C |
| Measuring range [°F] [Max] | 320 °F |
| Measuring range [°F] [Min] | -94 °F |
| Number of terminals [pcs] | 3 pc |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection size | 1/2 |
| Process connection standard | ISO 7 |
| Process connection type | R |
| Product family name | AKS |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.32 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube length [in] | 6.3 in |
| Protection tube length [mm] | 160 mm |
| Protection tube material | Stainless steel |
| Quantity per packing format | 9 pc |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Type | AKS 21 W |
| Wires [pcs] | 2 pc |
Product details
| Gross weight | 0.33 kg |
| Net weight | 0.32 kg |
| EAN | 5702422022565 |
| Gross weight | 0.33 kg |
| Net weight | 0.32 kg |
| EAN | 5702422022565 |
| Ambient temperature max. [°C] | 160 °C |
| Ambient temperature max. [°F] | 320 °F |
| Connection standard | ISO 7 |
| Connection type | R |
| Electrical connection | Type B |
| Electrical connection size | Pg 16 |
| Measuring range [°C] [Max] | 160 °C |
| Measuring range [°C] [Min] | -70 °C |
| Measuring range [°F] [Max] | 320 °F |
| Measuring range [°F] [Min] | -94 °F |
| Number of terminals [pcs] | 3 pc |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection size | 1/2 |
| Process connection standard | ISO 7 |
| Process connection type | R |
| Product family name | AKS |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.32 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube length [in] | 6.3 in |
| Protection tube length [mm] | 160 mm |
| Protection tube material | Stainless steel |
| Quantity per packing format | 9 pc |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Type | AKS 21 W |
| Wires [pcs] | 2 pc |
| Ambient temperature max. [°C] | 160 °C |
| Ambient temperature max. [°F] | 320 °F |
| Connection standard | ISO 7 |
| Connection type | R |
| Electrical connection | Type B |
| Electrical connection size | Pg 16 |
| Measuring range [°C] [Max] | 160 °C |
| Measuring range [°C] [Min] | -70 °C |
| Measuring range [°F] [Max] | 320 °F |
| Measuring range [°F] [Min] | -94 °F |
| Number of terminals [pcs] | 3 pc |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection size | 1/2 |
| Process connection standard | ISO 7 |
| Process connection type | R |
| Product family name | AKS |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.32 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube length [in] | 6.3 in |
| Protection tube length [mm] | 160 mm |
| Protection tube material | Stainless steel |
| Quantity per packing format | 9 pc |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Type | AKS 21 W |
| Wires [pcs] | 2 pc |
