Description
Type Code MBT 5310 , Weight 0.229 Kg , Ambient temp. max. 125 °C , Ambient temp. max. 257 °F , Conn. mat. Stainless steel More details

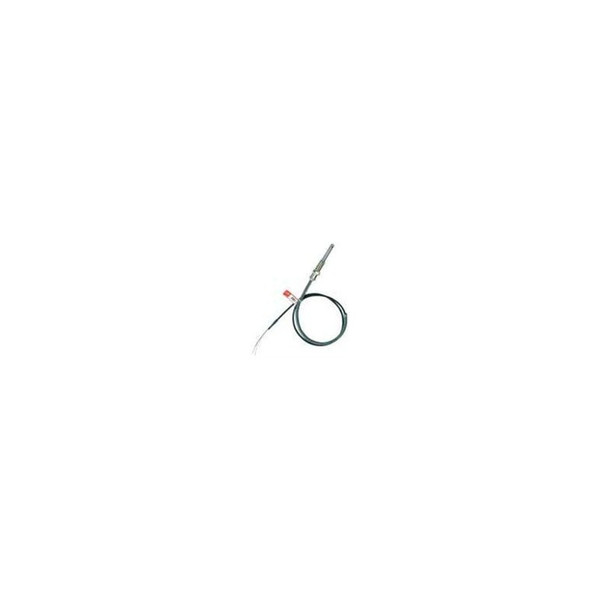

The MBT 5310 is a marine approved temperature sensor specially designed for measuring bearing temperatures. To get a very short reaction time the measuring element is placed on a silver plate in the tip of the sensor, which results in a reaction time of down to t0,5 = 0,5 sec. in water. The sensor is fitted with an adjustable bayonet coupling and a spring, which ensures metallic contact between bearing and sensor at all times. This temperature sensor is based on a standardized Pt100 element, which gives a reliable and accurate measurement. Insertion length adjustable from 60 to 300 mm Up to +200 °C media temperatures Pt100 resistance element Extremely short reaction time Available with all relevant marine approvals
| Type Code | MBT 5310 |
| Weight | 0.229 Kg |
| Ambient temp. max. | 125 °C |
| Ambient temp. max. | 257 °F |
| Conn. mat. | Stainless steel |
| Conn. std. | ISO 228 |
| Conn. type | G |
| EAN no. | 5702423270453 |
| Electr. conn. Male/Female | Male and Female |
| Electr. conn. size | Pg 9 |
| Electr. conn. std. | EN 175301-803-A |
| Encl. | IP65 |
| Insert length | 8,46 - 8,94 in |
| Insert length | 215 - 227 mm |
| Insert. type | Variable |
| No. of terminals | 3 PC |
| Output sign. | Ohm |
| Process conn. Male/Female | Male |
| Process conn. mat. | Stainless steel |
| Process conn. size | 1/2 |
| Process conn. std. | ISO 228-1-A |
| Process conn. type | G |
| Prot. tube diam. (ø) | 0,31 in |
| Prot. tube diam. (ø) | 8,0 mm |
| Prot. tube mat. | AISI 316 Ti |
| Resistance value | 1 x Pt x 100 |
| Sensor element std. | EN 60751 |
| Sensor element tol. | Class B |
| Sensor Insert | fixed |
| Temp. range | -50 - 200 °C |
| Temp. range | -58 - 392 °F |
| Type designation | MBT 5310-00-227-100 |
| Wires | 2 PC |
