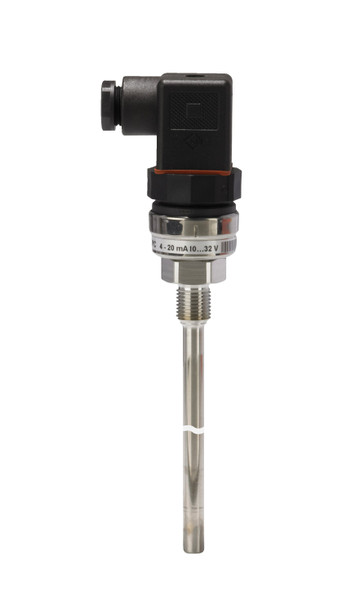

Description
Process Connections: G1/4 , ISO 228-1-A, Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 120, Insertion length [mm]: 250, Output signal [mA] [Min]: 4, Output signal [mA] [Max]: 20, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 1000, Protection tube material: AISI 316 Ti, Electrical connection: DIN-plug
Product details
| Gross weight | 0.22 kg |
| Net weight | 0.2 kg |
| EAN | 5702423197422 |
| Gross weight | 0.22 kg |
| Net weight | 0.2 kg |
| EAN | 5702423197422 |
| Ambient temperature max. [°C] | 85 °C |
| Ambient temperature max. [°F] | 185 °F |
| Connection material | Stainless steel |
| Connection standard | ISO 228 |
| Connection type | G |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| Insertion length [in] | 9.84 in |
| Insertion length [mm] | 250 mm |
| Insertion type | Fixed |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process Connections | G1/4 , ISO 228-1-A |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.31 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 Ti |
| Quantity per packing format | 9 pc |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element tolerance | < ± 1% FS |
| Sensor element type | Pt |
| Sensor Insert | Fixed |
| Supply voltage [V] DC [Max] | 32 V |
| Supply voltage [V] DC [Min] | 10 V |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -58 °F |
| Transmitter setting range [°C] [Max] | 100 °C |
| Transmitter setting range [°C] [Min] | 0 °C |
| Transmitter setting range [°F] [Max] | 212 °F |
| Transmitter setting range [°F] [Min] | 32 °F |
| Transmitter type | Integrated |
| Type | MBT 3560 |
| Type designation | MBT 3560-0000-0250-10-110 |
| Ambient temperature max. [°C] | 85 °C |
| Ambient temperature max. [°F] | 185 °F |
| Connection material | Stainless steel |
| Connection standard | ISO 228 |
| Connection type | G |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| Insertion length [in] | 9.84 in |
| Insertion length [mm] | 250 mm |
| Insertion type | Fixed |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process Connections | G1/4 , ISO 228-1-A |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.31 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 Ti |
| Quantity per packing format | 9 pc |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element tolerance | < ± 1% FS |
| Sensor element type | Pt |
| Sensor Insert | Fixed |
| Supply voltage [V] DC [Max] | 32 V |
| Supply voltage [V] DC [Min] | 10 V |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -58 °F |
| Transmitter setting range [°C] [Max] | 100 °C |
| Transmitter setting range [°C] [Min] | 0 °C |
| Transmitter setting range [°F] [Max] | 212 °F |
| Transmitter setting range [°F] [Min] | 32 °F |
| Transmitter type | Integrated |
| Type | MBT 3560 |
| Type designation | MBT 3560-0000-0250-10-110 |
